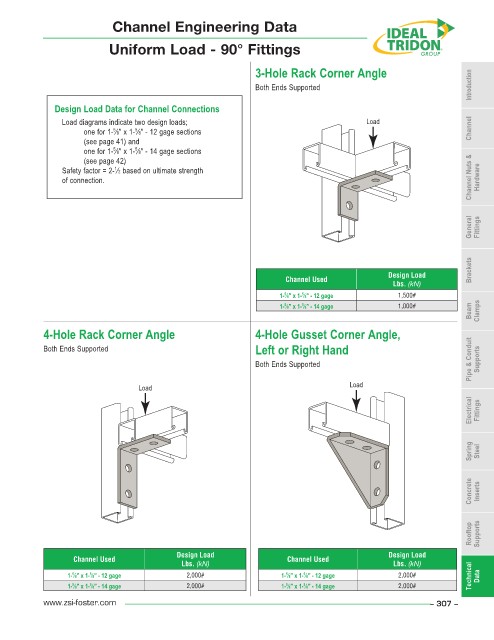

Channel Engineering Data

Uniform Load - 90° Fittings

3-Hole Rack Corner Angle

Both Ends Supported Introduction

Design Load Data for Channel Connections
Load diagrams indicate two design loads; Load
5
one for 1- ⁄8" x 1- ⁄8" - 12 gage sections Channel
5
(see page 41) and
5
one for 1- ⁄8" x 1- ⁄8" - 14 gage sections
5
(see page 42)
Safety factor = 2- ⁄2 based on ultimate strength
1
of connection. Channel Nuts & Hardware

General Fittings

Brackets
Design Load
Channel Used
Lbs. (kN)
1- ⁄8" x 1- ⁄8" - 12 gage 1,500#
5
5
Beam Clamps
1- ⁄8" x 1- ⁄8" - 14 gage 1,000#
5
5
4-Hole Rack Corner Angle 4-Hole Gusset Corner Angle,
Both Ends Supported Left or Right Hand

Both Ends Supported Pipe & Conduit Supports

Load Load
Electrical Fittings

Spring Steel

Concrete Inserts

Rooftop Supports

Design Load Design Load
Channel Used Channel Used
Lbs. (kN) Lbs. (kN)
5
5
5
5
1- ⁄8" x 1- ⁄8" - 12 gage 2,000# 1- ⁄8" x 1- ⁄8" - 12 gage 2,000# Technical Data
5
5
5
1- ⁄8" x 1- ⁄8" - 14 gage 2,000# 1- ⁄8" x 1- ⁄8" - 14 gage 2,000#
5
