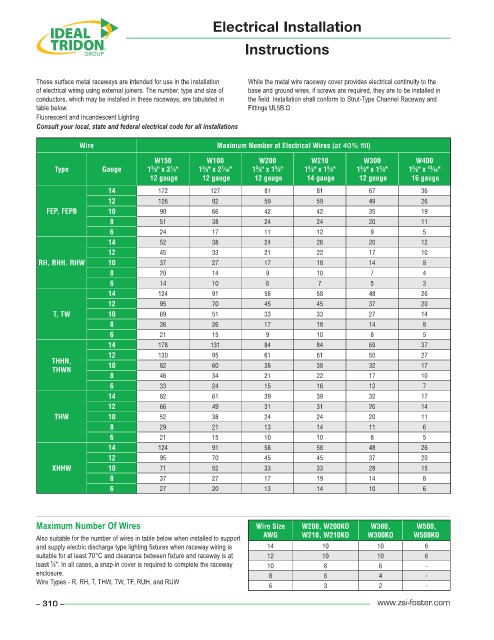

Electrical Installation

Instructions

These surface metal raceways are intended for use in the installation While the metal wire raceway cover provides electrical continuity to the
of electrical wiring using external joiners. The number, type and size of base and ground wires, if screws are required, they are to be installed in
conductors, which may be installed in these raceways, are tabulated in the field. Installation shall conform to Strut-Type Channel Raceway and
table below. Fittings UL5B.O
Fluorescent and Incandescent Lighting
Consult your local, state and federal electrical code for all installations

Wire Maximum Number of Electrical Wires (at 40% fill)
W150 W100 W200 W210 W300 W400
7
1
5
5
13
5
Type Gauge 1 ⁄8" x 3 ⁄4" 1 ⁄8" x 2 ⁄16" 1 ⁄8" x 1 ⁄8" 1 ⁄8" x 1 ⁄8" 1 ⁄8" x 1 ⁄8" 1 ⁄8" x ⁄16"
5
5
5
5
3
5
12 gauge 12 gauge 12 gauge 14 gauge 12 gauge 16 gauge
14 172 127 81 81 67 36
12 126 92 59 59 49 26
FEP, FEPB 10 90 66 42 42 35 19
8 51 38 24 24 20 11
6 24 17 11 12 9 5
14 52 38 24 26 20 12
12 45 33 21 22 17 10
RH, RHH, RHW 10 37 27 17 18 14 8
8 20 14 9 10 7 4
6 14 10 6 7 5 3
14 124 91 58 58 48 26
12 95 70 45 45 37 20
T, TW 10 69 51 33 33 27 14
8 36 26 17 18 14 8
6 21 15 9 10 8 5
14 178 131 84 84 69 37
12 130 95 61 61 50 27
THHN,
THWN 10 82 60 38 38 32 17
8 46 34 21 22 17 10
6 33 24 15 16 12 7
14 82 61 39 39 32 17
12 66 49 31 31 26 14
THW 10 52 38 24 24 20 11
8 29 21 13 14 11 6
6 21 15 10 10 8 5
14 124 91 58 58 48 26
12 95 70 45 45 37 20
XHHW 10 71 52 33 33 28 15
8 37 27 17 19 14 8
6 27 20 13 14 10 6

Maximum Number Of Wires Wire Size W200, W200KO W300, W500,
AWG W210, W210KO W300KO W500KO
Also suitable for the number of wires in table below when installed to support
and supply electric discharge type lighting fixtures when raceway wiring is 14 10 10 6
suitable for at least 70°C and clearance between fixture and raceway is at 12 10 10 6
least ⁄8". In all cases, a snap-in cover is required to complete the raceway 10 8 6 -
1
enclosure. 8 6 4 -
Wire Types - R, RH, T, THW, TW, TF, RUH, and RUW
6 3 2 -
