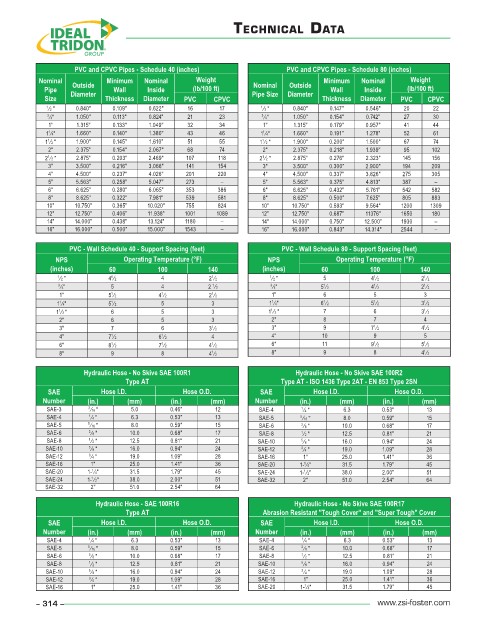

Technical DaTa

PVC and CPVC Pipes - Schedule 40 (inches) PVC and CPVC Pipes - Schedule 80 (inches)
Nominal Outside Minimum Nominal Weight Nominal Outside Minimum Nominal Weight
Pipe Diameter Wall Inside (lb/100 ft) Pipe Size Diameter Wall Inside (lb/100 ft)
Size Thickness Diameter PVC CPVC Thickness Diameter PVC CPVC
1 ⁄2 " 0.840" 0.109" 0.622" 16 17 1 ⁄2 " 0.840" 0.147" 0.546" 20 22
3 ⁄4" 1.050" 0.113" 0.824" 21 23 3 ⁄4" 1.050" 0.154" 0.742" 27 30
1" 1.315" 0.133" 1.049" 32 34 1" 1.315" 0.179" 0.957" 41 44
1
1 ⁄4" 1.660" 0.140" 1.380" 43 46 1 ⁄4" 1.660" 0.191" 1.278" 52 61
1
1 ⁄2 " 1.900" 0.145" 1.610" 51 55 1 ⁄2 " 1.900" 0.200" 1.500" 67 74
1
1
2" 2.375" 0.154" 2.067" 68 74 2" 2.375" 0.218" 1.939" 95 102
2 ⁄2 " 2.875" 0.203" 2.469" 107 118 2 ⁄2 " 2.875" 0.276" 2.323" 145 156
1
1
3" 3.500" 0.216" 3.068" 141 154 3" 3.500" 0.300" 2.900" 194 209
4" 4.500" 0.237" 4.026" 201 220 4" 4.500" 0.337" 3.826" 275 305
5" 5.563" 0.258" 5.047" 273 – 5" 5.563" 0.375" 4.813" 387 –
6" 6.625" 0.280" 6.065" 353 386 6" 6.625" 0.432" 5.761" 542 582
8" 8.625" 0.322" 7.981" 539 581 8" 8.625" 0.500" 7.625" 805 883
10" 10.750" 0.365" 10.020" 755 824 10" 10.750" 0.593" 9.564" 1200 1309
12" 12.750" 0.406" 11.938" 1001 1089 12" 12.750" 0.687" 11376" 1650 180
14" 14.000" 0.438" 13.124" 1180 – 14" 14.000" 0.750" 12.500" 1930 –
16" 16.000" 0.500" 15.000" 1543 – 16" 16.000" 0.843" 14.314" 2544 –
PVC - Wall Schedule 40 - Support Spacing (feet) PVC - Wall Schedule 80 - Support Spacing (feet)
NPS Operating Temperature (°F) NPS Operating Temperature (°F)
(inches) 60 100 140 (inches) 60 100 140
1
1 ⁄2 " 4 ⁄2 4 2 ⁄2 1 ⁄2 " 5 4 ⁄2 2 ⁄2
1
1
1
3 ⁄4" 5 4 2 ⁄2 3 ⁄4" 5 ⁄2 4 ⁄2 2 ⁄2
1
1
1
1
1" 5 ⁄2 4 ⁄2 2 ⁄2 1" 6 5 3
1
1
1
1
1
1
1
1
1
1 ⁄4" 5 ⁄2 5 3 1 ⁄4" 6 ⁄2 5 ⁄2 3 ⁄2
1
1
1 ⁄2 " 6 5 3 1 ⁄2 " 7 6 3 ⁄2
1
2" 6 5 3 2" 8 7 4
1
1
3" 7 6 3 ⁄2 3" 9 7 ⁄2 4 ⁄2
1
1
4" 7 ⁄2 6 ⁄2 4 4" 10 9 5
1
1
1
1
1
1
6" 8 ⁄2 7 ⁄2 4 ⁄2 6" 11 9 ⁄2 5 ⁄2
1
1
8" 9 8 4 ⁄2 8" 9 8 4 ⁄2
Hydraulic Hose - No Skive SAE 100R1 Hydraulic Hose - No Skive SAE 100R2
Type AT Type AT - ISO 1436 Type 2AT - EN 853 Type 2SN
SAE Hose I.D. Hose O.D. SAE Hose I.D. Hose O.D.
Number (in.) (mm) (in.) (mm) Number (in.) (mm) (in.) (mm)
SAE-3 3 ⁄16 " 5.0 0.46" 12 SAE-4 1 ⁄4 " 6.3 0.53" 13
SAE-4 1 ⁄4 " 6.3 0.53" 13 SAE-5 5 ⁄16 " 8.0 0.59" 15
SAE-5 5 ⁄16 " 8.0 0.59" 15 SAE-6 3 ⁄8 " 10.0 0.68" 17
SAE-6 3 ⁄8 " 10.0 0.68" 17 SAE-8 1 ⁄2 " 12.5 0.81" 21
SAE-8 1 ⁄2 " 12.5 0.81" 21 SAE-10 5 ⁄8 " 16.0 0.94" 24
SAE-10 5 ⁄8 " 16.0 0.94" 24 SAE-12 3 ⁄4 " 19.0 1.09" 28
SAE-12 3 ⁄4 " 19.0 1.09" 28 SAE-16 1" 25.0 1.41" 36
SAE-16 1" 25.0 1.41" 36 SAE-20 1- ⁄4" 31.5 1.79" 45
1
1
SAE-20 1- ⁄4" 31.5 1.79" 45 SAE-24 1- ⁄2" 38.0 2.00" 51
1
SAE-24 1- ⁄2" 38.0 2.00" 51 SAE-32 2" 51.0 2.54" 64
1
SAE-32 2" 51.0 2.54" 64
Hydraulic Hose - SAE 100R16 Hydraulic Hose - No Skive SAE 100R17
Type AT Abrasion Resistant "Tough Cover" and "Super Tough" Cover
SAE Hose I.D. Hose O.D. SAE Hose I.D. Hose O.D.
Number (in.) (mm) (in.) (mm) Number (in.) (mm) (in.) (mm)
SAE-4 1 ⁄4 " 6.3 0.53" 13 SAE-4 1 ⁄4 " 6.3 0.53" 13
SAE-5 5 ⁄16 " 8.0 0.59" 15 SAE-6 3 ⁄8 " 10.0 0.68" 17
SAE-6 3 ⁄8 " 10.0 0.68" 17 SAE-8 1 ⁄2 " 12.5 0.81" 21
SAE-8 1 ⁄2 " 12.5 0.81" 21 SAE-10 5 ⁄8 " 16.0 0.94" 24
SAE-10 5 ⁄8 " 16.0 0.94" 24 SAE-12 3 ⁄4 " 19.0 1.09" 28
SAE-12 3 ⁄4 " 19.0 1.09" 28 SAE-16 1" 25.0 1.41" 36
SAE-16 1" 25.0 1.41" 36 SAE-20 1- ⁄4" 31.5 1.79" 45
1
