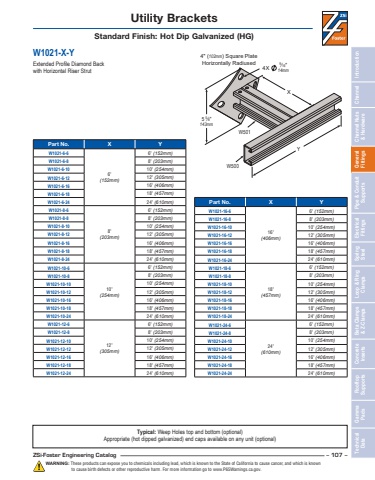

Technical Data Gamma Pads Rooftop Supports Concrete Inserts Beta Clamps & Z-Clamps Loop & Ring Clamps Spring Steel Electrical Fittings Pipe & Conduit Supports General Fittings Channel Nuts & Hardware Channel IntroductionZSi-Foster Engineering Catalog – 107 –WARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Utility BracketsStandard Finish: Hot Dip Galvanized (HG)W1021-X-YExtended Profile Diamond Back with Horizontal Riser Strut 4X X4\Horizontally Radiused5 5⁄8\143mm9⁄16\14mmYW501W500Typical: Weep Holes top and bottom (optional) Appropriate (hot dipped galvanized) end caps available on any unit (optional)Part No. X YW1021-6-66\(152mm)6\W1021-6-8 8\W1021-6-10 10\W1021-6-12 12\W1021-6-16 16\W1021-6-18 18\W1021-6-24 24\W1021-8-68\(203mm)6\W1021-8-8 8\W1021-8-10 10\W1021-8-12 12\W1021-8-16 16\W1021-8-18 18\W1021-8-24 24\W1021-10-610\(254mm)6\W1021-10-8 8\W1021-10-10 10\W1021-10-12 12\W1021-10-16 16\W1021-10-18 18\W1021-10-24 24\W1021-12-612\(305mm)6\W1021-12-8 8\W1021-12-10 10\W1021-12-12 12\W1021-12-16 16\W1021-12-18 18\W1021-12-24 24\Part No. X YW1021-16-616\(406mm)6\W1021-16-8 8\W1021-16-10 10\W1021-16-12 12\W1021-16-16 16\W1021-16-18 18\W1021-16-24 24\W1021-18-618\(457mm)6\W1021-18-8 8\W1021-18-10 10\W1021-18-12 12\W1021-18-16 16\W1021-18-18 18\W1021-18-24 24\W1021-24-624\(610mm)6\W1021-24-8 8\W1021-24-10 10\W1021-24-12 12\W1021-24-16 16\W1021-24-18 18\W1021-24-24 24\
