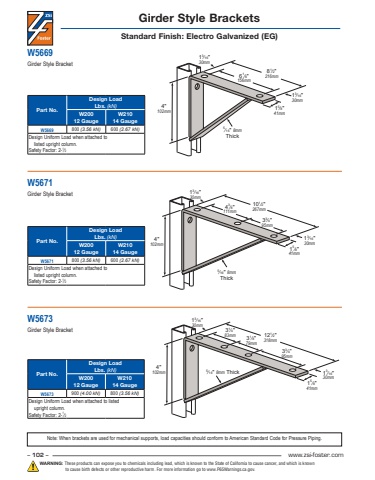

– 102 – www.zsi-foster.comWARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Girder Style BracketsStandard Finish: Electro Galvanized (EG)W5669Girder Style BracketW5671Girder Style BracketW5673Girder Style Bracket13⁄16\30mm15⁄8\41mm4\102mm5⁄16\Thick13⁄16\30mm81⁄2\6 216mm 1⁄8\156mmNote: When brackets are used for mechanical supports, load capacities should conform to American Standard Code for Pressure Piping.Part No.Design Load Lbs. (kN)W200 12 GaugeW210 14 GaugeW5673 900 (4.00 kN) 800 (3.56 kN)Design Uniform Load when attached to listed upright column.Safety Factor: 2-1⁄2Part No.Design Load Lbs. (kN)W200 12 GaugeW210 14 GaugeW5671 800 (3.56 kN) 600 (2.67 kN)Design Uniform Load when attached to listed upright column.Safety Factor: 2-1⁄2Part No.Design Load Lbs. (kN)W200 12 GaugeW210 14 GaugeW5669 800 (3.56 kN) 600 (2.67 kN)Design Uniform Load when attached to listed upright column.Safety Factor: 2-1⁄213⁄16\30mm15⁄8\41mm101⁄2\267mm 43⁄8\111mm13⁄16\30mm4\102mm5⁄16\Thick33⁄4\95mm13⁄16\30mm15⁄8\41mm121⁄2\318mm31⁄4\83mm 31⁄8\79mm33⁄4\95mm13⁄16\30mm4\102mm 5⁄16\
