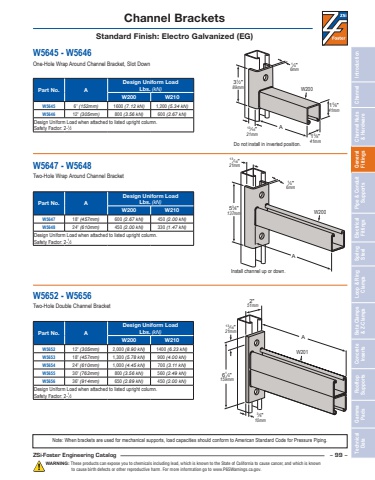

Technical Data Gamma Pads Rooftop Supports Concrete Inserts Beta Clamps & Z-Clamps Loop & Ring Clamps Spring Steel Electrical Fittings Pipe & Conduit Supports General Fittings Channel Nuts & Hardware Channel IntroductionZSi-Foster Engineering Catalog – 99 –WARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.W5645 - W5646One-Hole Wrap Around Channel Bracket, Slot Down13⁄16\ 21mm31⁄2\89mmA1⁄4\6mm15⁄8\41mm15⁄8\41mmW200Do not install in inverted position.Channel BracketsStandard Finish: Electro Galvanized (EG)Note: When brackets are used for mechanical supports, load capacities should conform to American Standard Code for Pressure Piping.Part No. ADesign Uniform Load Lbs. (kN)W200 W210W5645 6\1600 (7.12 kN) 1,200 (5.34 kN)W5646 12\800 (3.56 kN) 600 (2.67 kN)Design Uniform Load when attached to listed upright column. Safety Factor: 2-1⁄2W5647 - W5648Two-Hole Wrap Around Channel Bracket13⁄16\ 21mm1⁄4\6mm53⁄8\137mmAW200Install channel up or down.Part No. ADesign Uniform Load Lbs. (kN)W200 W210W5647 18\600 (2.67 kN) 450 (2.00 kN)W5648 24\450 (2.00 kN) 330 (1.47 kN)Design Uniform Load when attached to listed upright column.Safety Factor: 2-1⁄2Part No. ADesign Uniform Load Lbs. (kN)W200 W210W5652 12\2,000 (8.90 kN) 1400 (6.23 kN)W5653 18\1,300 (5.78 kN) 900 (4.00 kN)W5654 24\1,000 (4.45 kN) 700 (3.11 kN)W5655 30\800 (3.56 kN) 560 (2.49 kN)W5656 36\650 (2.89 kN) 450 (2.00 kN)Design Uniform Load when attached to listed upright column.Safety Factor: 2-1⁄2W5652 - W5656Two-Hole Double Channel Bracket3⁄8\10mm13⁄16\ 21mm61⁄4\159mmA2\51mmW201
