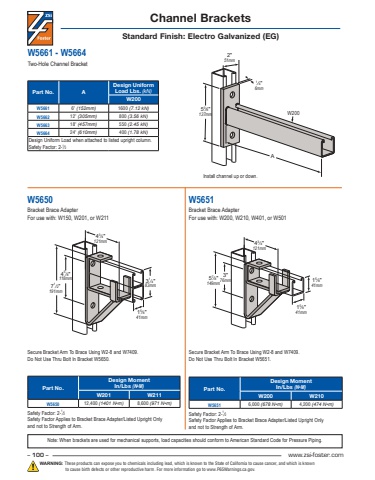

– 100 – www.zsi-foster.comWARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Channel BracketsStandard Finish: Electro Galvanized (EG)Note: When brackets are used for mechanical supports, load capacities should conform to American Standard Code for Pressure Piping.W5661 - W5664Two-Hole Channel Bracket53⁄8\137mmA2\51mm1⁄4\6mmW200Install channel up or down.Part No. ADesign Uniform Load Lbs. (kN)W200W5661 6\1600 (7.12 kN)W5662 12\800 (3.56 kN)W5663 18\550 (2.45 kN)W5664 24\400 (1.78 kN)Design Uniform Load when attached to listed upright column.Safety Factor: 2-1⁄2W5651Bracket Brace AdapterFor use with: W200, W210, W401, or W501W5650Bracket Brace AdapterFor use with: W150, W201, or W211Part No.Design Moment In/Lbs (N•M)W201 W211W5650 12,400 (1401 N•m) 8,600 (971 N•m)Safety Factor: 2-1⁄2 Safety Factor Applies to Bracket Brace Adapter/Listed Upright Only and not to Strength of Arm.Part No.Design Moment In/Lbs (N•M)W200 W210W5651 6,000 (678 N•m) 4,200 (474 N•m)Safety Factor: 2-1⁄2 Safety Factor Applies to Bracket Brace Adapter/Listed Upright Only and not to Strength of Arm.Secure Bracket Arm To Brace Using W2-8 and W7409. Do Not Use Thru Bolt In Bracket W5650.Secure Bracket Arm To Brace Using W2-8 and W7409. Do Not Use Thru Bolt In Bracket W5651.43⁄4\121mm45⁄8\118mm71⁄2\191mm31⁄4\83mm15⁄8\41mm43⁄4\121mm3\76mm 57⁄8\149mm 15⁄8\41mm15⁄8\41mm
