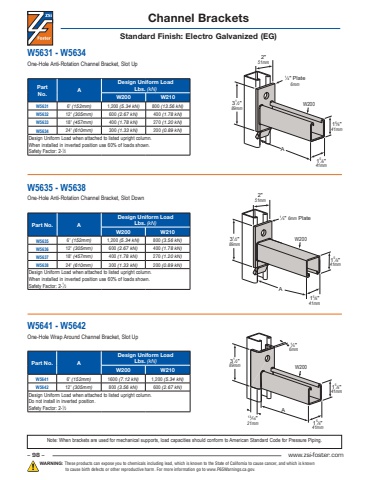

– 98 – www.zsi-foster.comWARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Channel BracketsStandard Finish: Electro Galvanized (EG)W5631 - W5634One-Hole Anti-Rotation Channel Bracket, Slot UpW5635 - W5638One-Hole Anti-Rotation Channel Bracket, Slot Down31⁄2\89mm15⁄8\41mm15⁄8\41mm1⁄4\6mm2\51mmAW20031⁄2\89mm2\51mmA1⁄4\15⁄8\41mm15⁄8\41mmW200Part No. ADesign Uniform Load Lbs. (kN)W200 W210W5631 6\1,200 (5.34 kN) 800 (13.56 kN)W5632 12\600 (2.67 kN) 400 (1.78 kN)W5633 18\400 (1.78 kN) 270 (1.20 kN)W5634 24\300 (1.33 kN) 200 (0.89 kN)Design Uniform Load when attached to listed upright column.When installed in inverted position use 60% of loads shown.Safety Factor: 2-1⁄2Part No. ADesign Uniform Load Lbs. (kN)W200 W210W5635 6\1,200 (5.34 kN) 800 (3.56 kN)W5636 12\600 (2.67 kN) 400 (1.78 kN)W5637 18\400 (1.78 kN) 270 (1.20 kN)W5638 24\300 (1.33 kN) 200 (0.89 kN)Design Uniform Load when attached to listed upright column.When installed in inverted position use 60% of loads shown. Safety Factor: 2-1⁄2W5641 - W5642One-Hole Wrap Around Channel Bracket, Slot Up31⁄2\89mmA1⁄4\6mm13⁄16\ 21mm15⁄8\41mm15⁄8\41mmW200Part No. ADesign Uniform Load Lbs. (kN)W200 W210W5641 6\1600 (7.12 kN) 1,200 (5.34 kN)W5642 12\800 (3.56 kN) 600 (2.67 kN)Design Uniform Load when attached to listed upright column.Do not install in inverted position.Safety Factor: 2-1⁄2Note: When brackets are used for mechanical supports, load capacities should conform to American Standard Code for Pressure Piping.
