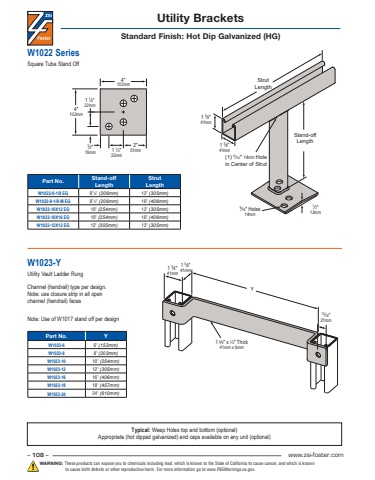

– 108 – www.zsi-foster.comWARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Utility BracketsStandard Finish: Hot Dip Galvanized (HG)W1022 SeriesSquare Tube Stand Off Part No. Stand-off LengthStrut LengthW1022-8-1/8 EG 81/8\12\W1022-8-1/8-M EG 81/8\16\W1022-10X12 EG 10\12\W1022-10X16 EG 10\16\W1022-12X12 EG 12\12\1 5⁄8\41mm1 5⁄8\41mm1⁄2\13mm9⁄16\14mmStrutLengthStand-offLength(1) 9⁄16\in Center of Strut2\51mm4\102mm4\102mm1 1⁄4\32mm3⁄4\19mm1 1⁄4\32mmTypical: Weep Holes top and bottom (optional) Appropriate (hot dipped galvanized) end caps available on any unit (optional)W1023-YUtility Vault Ladder Rung Channel (handrail) type per design. Note: use closure strip in all open channel (handrail) facesNote: Use of W1017 stand off per design1 5⁄8\41mm1 5⁄8\41mm1 5⁄8\⁄4\41mm x 6mmY13⁄16\ 21mmPart No. YW1023-6 6\W1023-8 8\W1023-10 10\W1023-12 12\W1023-16 16\W1023-18 18\W1023-24 24\
