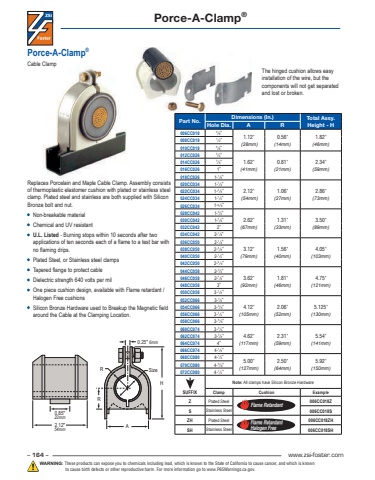

Page 164 - Demo

– 164 – www.zsi-foster.comWARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Porce-A-Clamp®Replaces Porcelain and Maple Cable Clamp. Assembly consists of thermoplastic elastomer cushion with plated or stainless steel clamp. Plated steel and stainless are both supplied with Silicon Bronze bolt and nut.• Non-breakable material• Chemical and UV resistant• U.L. Listed - Burning stops within 10 seconds after two applications of ten seconds each of a flame to a test bar with no flaming drips.• Plated Steel, or Stainless steel clamps• Tapered flange to protect cable• Dielectric strength 640 volts per mil• One piece cushion design, available with Flame retardant / Halogen Free cushions• Silicon Bronze Hardware used to Breakup the Magnetic field around the Cable at the Clamping Location.The hinged cushion allows easy installation of the wire, but the components will not get separated and lost or broken.Part No. Dimensions (In.) Total Assy. Hole Dia. A R Height - H006CC018 3⁄8\1.12\(28mm)0.56\(14mm)1.82\(46mm) 008CC018 1⁄2\010CC018 5⁄8\012CC026 3⁄4\1.62\(41mm)0.81\(21mm)2.34\(59mm)014CC026 7⁄8\016CC026 1\018CC026 1-1⁄8\020CC034 1-1⁄4\2.12\(54mm)1.06\(27mm)2.86\(73mm)022CC034 1-3⁄8\024CC034 1-1⁄2\026CC034 1-5⁄8\028CC042 1-3⁄4\2.62\(67mm)1.31\(33mm)3.50\(89mm)030CC042 1-7⁄8\032CC042 2\034CC042 2-1⁄8\036CC050 2-1⁄4\3.12\(79mm)1.56\(40mm)4.05\(103mm)038CC050 2-3⁄8\040CC050 2-1⁄2\042CC050 2-5⁄8\044CC058 2-3⁄4\3.62\(92mm)1.81\(46mm)4.75\(121mm)046CC058 2-7⁄8\048CC058 3\050CC058 3-1⁄8\052CC066 3-1⁄4\4.12\(105mm)2.06\(52mm)5.125\(130mm)054CC066 3-3⁄8\056CC066 3-1⁄2\058CC066 3-5⁄8\060CC074 3-3⁄4\4.62\(117mm)2.31\(59mm)5.54\(141mm)062CC074 3-7⁄8\064CC074 4\066CC074 4-1⁄8\068CC080 4-1⁄4\5.00\(127mm)2.50\(64mm)5.92\(150mm) 070CC080 4-3⁄8\072CC080 4-1⁄2\SUFFIXNote: All clamps have Silicon Bronze HardwareClamp Cushion ExampleZ Plated SteelFlame Retardant Flame Retardant 006CC018ZS Stainless Steel 006CC018SZH Plated Steel Flame RetardantHalogen FreeFlame Retardant 006CC018ZHSH Stainless Steel 006CC018SHPorce-A-Clamp®Cable Clamp0.85\22mm2.12\54mm0.25\R SizeRHA
