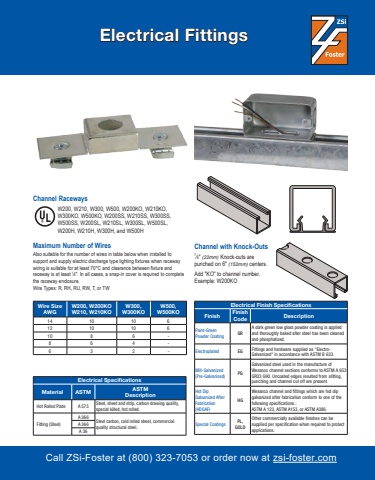

Call ZSi-Foster at (800) 323-7053 or order now at zsi-foster.comElectrical FittingsElectrical SpecificationsMaterial ASTM ASTM DescriptionHot Rolled Plate A 575 Steel, sheet and strip, carbon drawing quality, special killed, hot rolled.Fitting (Steel) A 366Steel carbon, cold rolled sheet, commercial quality structural steel. A 366 A 36 Electrical Finish SpecificationsFinish Finish Code DescriptionPaint-Green Powder Coating GRA dark green low gloss powder coating is applied and thoroughly baked after steel has been cleaned and phosphatized.Electroplated EG Fittings and hardware supplied as \,Galvanized\Mill-Galvanized (Pre-Galvanized) PGGalvanized steel used in the manufacture of Wesanco channel sections conforms to ASTM A 653 GR33 G90. Uncoated edges resulted from slitting, punching and channel cut off are present.Hot Dip Galvanized After Fabrication (HDGAF)HGWesanco channel and fittings which are hot dip galvanized after fabrication conform to one of the following specifications.: ASTM A 123, ASTM A153, or ASTM A386.Special Coatings PL, GOLDOther commercially available finishes can be supplied per specification when required to protect applications.Wire Size AWGW200, W200KO W210, W210KOW300, W300KOW500, W500KO14 10 10 612 10 10 610 8 6 -8 6 4 -6 3 2 -Maximum Number of WiresAlso suitable for the number of wires in table below when installed to support and supply electric discharge type lighting fixtures when raceway wiring is suitable for at least 70°C and clearance between fixture and raceway is at least 1⁄8\the raceway enclosure. Wire Types: R, RH, RU, RW, T, or TWChannel with Knock-Outs7⁄8\punched on 6\Add \Example: W200KOChannel RacewaysW200, W210, W300, W500, W200KO, W210KO, W300KO, W500KO, W200SS, W210SS, W300SS, W500SS, W200SL, W210SL, W300SL, W500SL, W200H, W210H, W300H, and W500H
