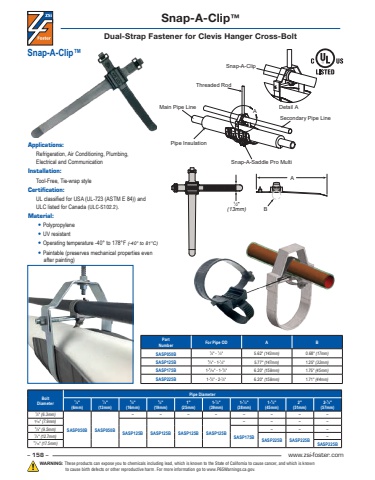

– 158 – www.zsi-foster.comWARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Part Number For Pipe OD A BSASP050B 1⁄4\⁄ 2\5.62\0.68\SASP125B 5⁄ 8\⁄4\5.77\1.25\SASP175B 1-5⁄16\⁄4\6.20\1.75\SASP225B 1-3⁄4\⁄4\6.20\1.71\Applications:Refrigeration, Air Conditioning, Plumbing, Electrical and CommunicationInstallation:Tool-Free, Tie-wrap styleCertification:UL classified for USA (UL-723 (ASTM E 84)) and ULC listed for Canada (ULC-S102.2).Material:• Polypropylene• UV resistant• Operating temperature -40° to 178°F (-40° to 81°C)• Paintable (preserves mechanical properties even after painting)BoltDiameterPipe Diameter1⁄4\(6mm)1⁄2\(13mm)5⁄8\(16mm)3⁄4\(19mm)1\(25mm)1-1⁄4\(39mm)1-1⁄2\(38mm)1-3⁄4\(45mm)2\(51mm)2-1⁄4\(57mm)1⁄4\SASP050B SASP050B– – – – – – – –5⁄16\SASP125B SASP125B SASP125B SASP125B– – – –3⁄ 8\SASP175B– – –1⁄ 2\SASP225B SASP225B –11⁄16\ (17.5mm) SASP225BDetail ASecondary Pipe LineSnap-A-ClipASnap-A-Saddle Pro MultiMain Pipe LinePipe InsulationThreaded RodBA1⁄2\(13mm)Snap-A-Clip™Dual-Strap Fastener for Clevis Hanger Cross-BoltSnap-A-Clip™
