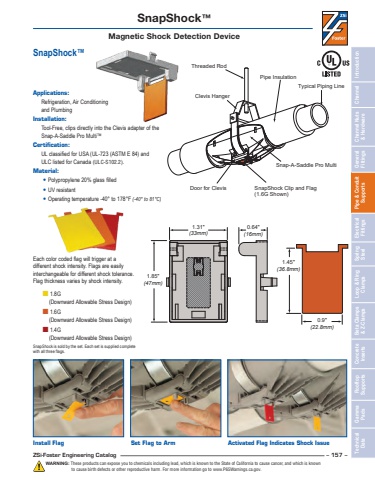

Technical Data Gamma Pads Rooftop Supports Concrete Inserts Beta Clamps & Z-Clamps Loop & Ring Clamps Spring Steel Electrical Fittings Pipe & Conduit Supports General Fittings Channel Nuts & Hardware Channel IntroductionZSi-Foster Engineering Catalog – 157 –WARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.SnapShock™Magnetic Shock Detection DeviceApplications:Refrigeration, Air Conditioning and PlumbingInstallation:Tool-Free, clips directly into the Clevis adapter of the Snap-A-Saddle Pro Multi™Certification:UL classified for USA (UL-723 (ASTM E 84) and ULC listed for Canada (ULC-S102.2).Material:• Polypropylene 20% glass filled• UV resistant• Operating temperature -40° to 178°F (-40° to 81°C)SnapShock Clip and Flag (1.6G Shown)Snap-A-Saddle Pro MultiDoor for ClevisTypical Piping LinePipe InsulationThreaded RodClevis Hanger0.9\(22.8mm)1.45\(36.8mm)1.85\(47mm)0.64\(16mm)1.31\(33mm)Each color coded flag will trigger at a different shock intensity. Flags are easily interchangeable for different shock tolerance. Flag thickness varies by shock intensity.■ 1.8G (Downward Allowable Stress Design)■ 1.6G (Downward Allowable Stress Design)■ 1.4G (Downward Allowable Stress Design)SnapShock is sold by the set. Each set is supplied complete with all three flags.Install Flag Set Flag to Arm Activated Flag Indicates Shock IssueSnapShock™
