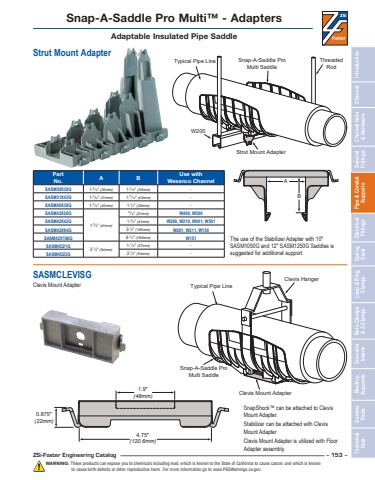

Technical Data Gamma Pads Rooftop Supports Concrete Inserts Beta Clamps & Z-Clamps Loop & Ring Clamps Spring Steel Electrical Fittings Pipe & Conduit Supports General Fittings Channel Nuts & Hardware Channel IntroductionZSi-Foster Engineering Catalog – 153 –WARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Snap-A-Saddle Pro Multi™ - AdaptersAdaptable Insulated Pipe SaddlePart No. A B Use with Wesanco ChannelSASM30X30G 1-3⁄16\1-3⁄16\-SASM31X43G 1-5⁄ 64\1-11⁄16\-SASM40X38G 1-9⁄16\1-1⁄ 2\-SASM42X20G1-5⁄ 8\13⁄16\ (21mm) W400, W500SASM42X42G 1-5⁄ 8\W200, W210, W401, W501SASM42X84G 3-1⁄4\W201, W211, W150SASM42X166G 6-1⁄ 2\W151SASM4D21G 2-1⁄ 8\1-1⁄16\-SASM4D22G 2-1⁄ 8\-ABStrut Mount Adapter1.9\(48mm)4.75\(120.6mm)0.875\(22mm)Snap-A-Saddle ProMulti SaddleThreadedRodW200Strut Mount AdapterTypical Pipe LineSnap-A-Saddle ProMulti SaddleTypical Pipe LineClevis HangerClevis Mount AdapterSnapShock™ can be attached to Clevis Mount Adapter.Stabilizer can be attached with Clevis Mount Adapter Clevis Mount Adapter is utilized with Floor Adapter assembly.The use of the Stabilizer Adapter with 10\SASM1050G and 12\suggested for additional support.SASMCLEVISGClevis Mount Adapter
