Page 147 - Demo

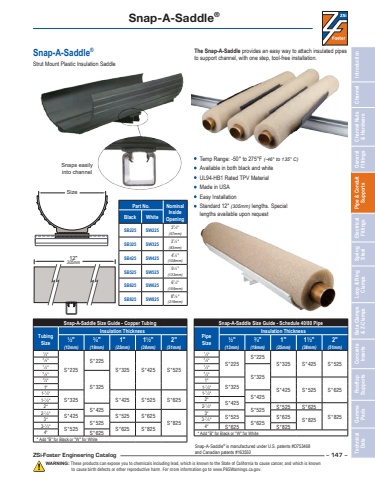

Technical Data Gamma Pads Rooftop Supports Concrete Inserts Beta Clamps & Z-Clamps Loop & Ring Clamps Spring Steel Electrical Fittings Pipe & Conduit Supports General Fittings Channel Nuts & Hardware Channel IntroductionZSi-Foster Engineering Catalog – 147 –WARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Snap-A-Saddle®Strut Mount Plastic Insulation SaddleSnap-A-Saddle®Part No. Nominal Inside Opening Black WhiteSB225 SW225 21⁄4\(57mm)SB325 SW325 31⁄4 \(83mm)SB425 SW425 41⁄4 \(108mm)SB525 SW525 51⁄4 \(133mm)SB625 SW625 61⁄4\(159mm)SB825 SW825 85⁄8 \(219mm)The Snap-A-Saddle provides an easy way to attach insulated pipes to support channel, with one step, tool-free installation.Snaps easily into channelSize• Temp Range: -50° to 275°F (-46° to 135° C)• Available in both black and white• UL94-HB1 Rated TPV Material• Made in USA• Easy Installation• Standard 12\lengths available upon requestSnap-A-Saddle Size Guide - Copper TubingTubing SizeInsulation Thickness1⁄2\(13mm)3⁄4\(19mm)1\(25mm)11⁄2\(38mm)2\(51mm) 1⁄4\S*225S*225S*325 S*425 S*5253⁄8\1⁄2\5⁄8\S*3253⁄4\1\1-1⁄4\1- S*325 S*425 S*525 S*625 1⁄2\2\S*425 2-1⁄2\S*425 S*525 S*625S*825 3\S*525 3-1⁄2\S*525 S*625 S*825 4\S*625* Add \Snap-A-Saddle Size Guide - Schedule 40/80 PipePipe SizeInsulation Thickness1⁄2\(13mm)3⁄4\(19mm)1\(25mm)11⁄2\(38mm)2\(51mm) 1⁄4\S*225S*225S*325 S*425 S*5253⁄8\1⁄2\S*325 3⁄4\1\S*325 S*425 S*525 S*625 1-1⁄4\1-1⁄2\S*425 2\S*425 2-1⁄2\S*525 S*525 S*625S*825 3\S*525 S*625 3- S*825 1⁄2\S*625 4\S*625 S*825* Add \12\305mmSnap-A-Saddle® is manufactured under U.S. patents #D753468 and Canadian patents #163550
