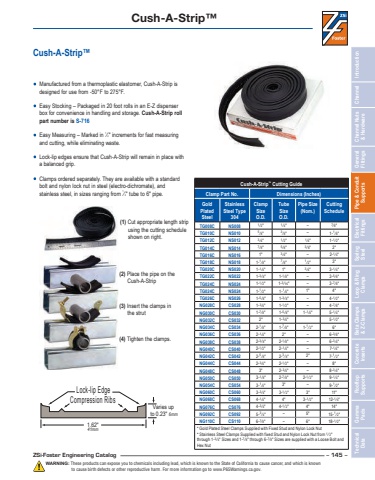

Technical Data Gamma Pads Rooftop Supports Concrete Inserts Beta Clamps & Z-Clamps Loop & Ring Clamps Spring Steel Electrical Fittings Pipe & Conduit Supports General Fittings Channel Nuts & Hardware Channel IntroductionZSi-Foster Engineering Catalog – 145 –WARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Cush-A-Strip™Lock-lip EdgeCompression Ribs1.62\41mmVaries up to 0.23\• Manufactured from a thermoplastic elastomer, Cush-A-Strip is designed for use from -50°F to 275°F.• Easy Stocking – Packaged in 20 foot rolls in an E-Z dispenser box for convenience in handling and storage. Cush-A-Strip roll part number is S-716• Easy Measuring – Marked in 1⁄4\and cutting, while eliminating waste.• Lock-lip edges ensure that Cush-A-Strip will remain in place with a balanced grip.• Clamps ordered separately. They are available with a standard bolt and nylon lock nut in steel (electro-dichromate), and stainless steel, in sizes ranging from 1⁄4\(1) Cut appropriate length strip using the cutting schedule shown on right.(2) Place the pipe on the Cush-A-Strip(3) Insert the clamps in the strut(4) Tighten the clamps.Cush-A-Strip™Cush-A-Strip™ Cutting GuideClamp Part No. Dimensions (Inches)Gold Plated SteelStainless Steel Type 304Clamp SizeO.D.Tube SizeO.D.Pipe Size(Nom.)Cutting ScheduleTG008C NS008 1 ⁄2\1 ⁄4\– 7⁄8\TG010C NS010 5 ⁄8\3 ⁄8\– 1-1 ⁄8\TG012C NS012 3 ⁄4\1 ⁄2\1 ⁄4\1-1 ⁄2\TG014C NS014 7⁄8\5 ⁄8\3 ⁄8\2\TG016C NS016 1\3 ⁄4\– 2-1 ⁄4\TG018C NS018 1-1 ⁄8\7⁄8\1 ⁄2\3\TG020C NS020 1-1 ⁄4\1\3 ⁄4\3-1 ⁄4\TG022C NS022 1-3 ⁄8\1-1 ⁄8\– 3-5 ⁄8\TG024C NS024 1-1 ⁄2\1-3 ⁄16\– 3-7⁄8\TG024C NS024 1-1 ⁄2\1-1 ⁄4\1\4\TG026C NS026 1-5 ⁄8\1-3 ⁄8\– 4-1 ⁄2\NG028C CS028 1-3 ⁄4\1-1 ⁄2\– 4-7⁄8\NG030C CS030 1-7⁄8\1-5 ⁄8\1-1 ⁄4\5-1 ⁄4\NG032C CS032 2\1-3 ⁄4\5-1 ⁄2\NG034C CS034 2-1 ⁄8\1-7⁄8\1-1 ⁄2\6\NG036C CS036 2-1 ⁄4\2\– 6-3 ⁄8\NG038C CS038 2-3 ⁄8\2-1 ⁄8\– 6-3 ⁄4\NG040C CS040 2-1 ⁄2\2-1 ⁄4\– 7-1 ⁄4\NG042C CS042 2-5 ⁄8\2-3 ⁄8\2\7-1 ⁄2\NG044C CS044 2-3 ⁄4\2-1 ⁄2\– 8\NG048C CS048 3\2-3 ⁄4\– 8-3 ⁄4\NG050C CS050 3-1 ⁄8\2-7⁄8\2-1 ⁄2\9-1 ⁄4\NG054C CS054 3-1 ⁄4\3\– 9-1 ⁄2\NG060C CS060 3-3 ⁄4\3-1 ⁄2\3\11\NG068C CS068 4-1 ⁄4\4\3-1 ⁄2\12-1 ⁄4\NG076C CS076 4-3 ⁄4\4-1 ⁄2\4\14\NG092C CS092 5-3 ⁄4\– 5\15-1 ⁄2\NG110C CS110 6-7⁄8\– 6\18-1 ⁄2\* Gold Plated Steel Clamps Supplied with Fixed Stud and Nylon Lock Nut* Stainless Steel Clamps Supplied with fixed Stud and Nylon Lock Nut from 1 ⁄2\through 1-3 ⁄4\Hex Nut
