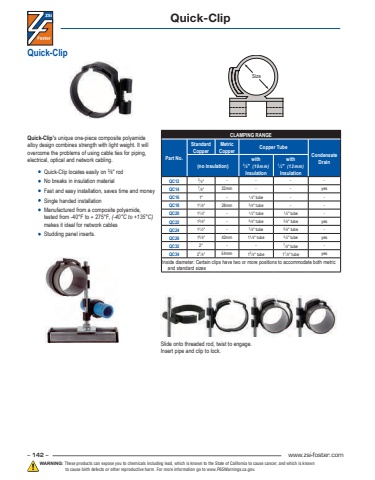

– 142 – www.zsi-foster.comWARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.SizeQuick-Clip’s unique one-piece composite polyamide alloy design combines strength with light weight. It will overcome the problems of using cable ties for piping, electrical, optical and network cabling.• Quick-Clip locates easily on 3⁄8\• No breaks in insulation material• Fast and easy installation, saves time and money• Single handed installation• Manufactured from a composite polyamide, tested from -40°F to + 275°F, (-40°C to +135°C) makes it ideal for network cables• Studding panel inserts.Quick-ClipSlide onto threaded rod, twist to engage.Insert pipe and clip to lock.CLAMPING RANGEPart No.Standard CopperMetric Copper Copper TubeCondensate Drain(no insulation)with 3⁄8\Insulationwith 1⁄2\InsulationQC12 3 ⁄4\- - - -QC14 7⁄8\22mm - - yesQC16 1\- 1 ⁄4\- -QC18 11 ⁄8\28mm 3 ⁄8\- -QC20 11 ⁄4\- 1 ⁄2\1 ⁄4\-QC22 13 ⁄8\- 5 ⁄8\3 ⁄8\yesQC24 11 ⁄2\- 7⁄8\5 ⁄8\-QC26 15 ⁄8\42mm 11 ⁄8\3 ⁄4\yesQC32 2\- - 7⁄8\-QC34 21 ⁄8\54mm 13 ⁄8\11 ⁄8\yesInside diameter: Certain clips have two or more positions to accommodate both metric and standard sizesQuick-Clip
