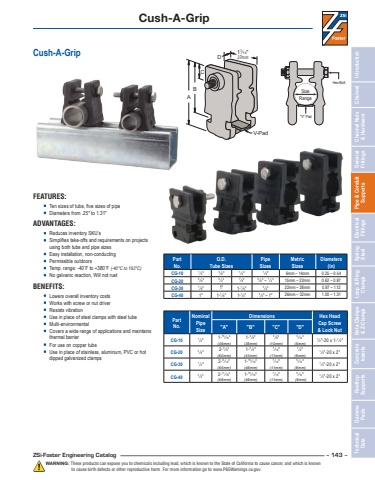

Technical Data Gamma Pads Rooftop Supports Concrete Inserts Beta Clamps & Z-Clamps Loop & Ring Clamps Spring Steel Electrical Fittings Pipe & Conduit Supports General Fittings Channel Nuts & Hardware Channel IntroductionZSi-Foster Engineering Catalog – 143 –WARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.FEATURES:• Ten sizes of tube, five sizes of pipe• Diameters from .25\ADVANTAGES:• Reduces inventory SKU’s• Simplifies take-offs and requirements on projects using both tube and pipe sizes• Easy installation, non-conducting• Permissible outdoors• Temp. range: -40˚F to +380˚F (-40°C to 193°C)• No galvanic reaction, Will not rust BENEFITS:• Lowers overall inventory costs• Works with screw or nut driver• Resists vibration• Use in place of steel clamps with steel tube• Multi-environmental• Covers a wide range of applications and maintains thermal barrier• For use on copper tube• Use in place of stainless, aluminum, PVC or hot dipped galvanized clampsSizeRangeHex Bolt\ PadPart No.O.D. Tube SizesPipe SizesMetric SizesDiameters (in)CG-10 1⁄4\3⁄8\1⁄2\1⁄4\6mm – 14mm 0.25 – 0.54CG-20 5⁄8\3⁄4\7⁄8\3⁄8\⁄2\15mm – 22mm 0.62 – 0.87CG-30 7⁄8\1\1-1⁄8\3⁄4\22mm – 28mm 0.87 – 1.12CG-40 1\1-1⁄8\1-1⁄4\3⁄4\26mm – 32mm 1.00 – 1.31Part No.Nominal Pipe SizeDimensions Hex Head Cap Screw& Lock Nut \ \ \ \CG-10 1⁄4\1-15 ⁄16\ (49mm)1-3 ⁄8\(35mm)3 ⁄8\(10mm)3 ⁄16\ (5mm)1⁄4\⁄2\CG-20 3 ⁄8\2-3 ⁄8\ (60mm)1-5 ⁄8\(41mm)7⁄16\(11mm)1⁄4\(6mm)1⁄4\CG-30 1⁄2\2-9 ⁄16\ (65mm)1-13 ⁄16\(46mm)7⁄16\(11mm)5 ⁄16\ (8mm)1⁄4\CG-40 3 ⁄4\2-11 ⁄16\ (68mm)1-15 ⁄16\(49mm)7⁄16\(11mm)5 ⁄16\(8mm)1⁄4\Cush-A-GripBCDV-PadA17⁄16\37mm Cush-A-Grip
