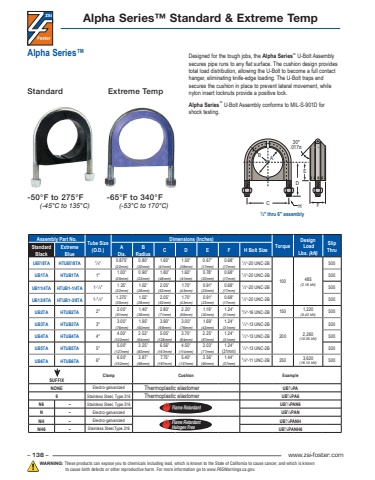

– 138 – www.zsi-foster.comWARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Alpha Series™ Standard & Extreme TempDesigned for the tough jobs, the Alpha Series™ U-Bolt Assembly secures pipe runs to any flat surface. The cushion design provides total load distribution, allowing the U-Bolt to become a full contact hanger, eliminating knife-edge loading. The U-Bolt traps and secures the cushion in place to prevent lateral movement, while nylon insert locknuts provide a positive lock. Alpha Series™ U-Bolt Assembly conforms to MIL-S-901D for shock testing. H F CDE1⁄2\8\A BB30°.017πAssembly Part No. Tube Size(O.D.)Dimensions (Inches)TorqueDesign Load Lbs. (kN)Slip Thru Standard BlackExtreme BlueA Dia.B Radius C D E F H Bolt SizeUB7/8TA HTUB7/8TA 7⁄8\0.875\(22mm)0.80\(20mm)1.60\(41mm)1.50\(38mm)0.67\(17mm)0.68\(17mm)1⁄4\100 485 (2.16 kN)500UB1TA HTUB1TA 1\1.00\(25mm)0.90\(23mm)1.80\(46mm)1.60\(41mm)0.78\(20mm)0.68\(17mm)1⁄4\500UB11/4TA HTUB1-1/4TA 1-1⁄4\1.25\(32mm)1.02\(26mm)2.05\(52mm)1.70\(43mm)0.91\(23mm)0.68\(17mm)1⁄4\500UB13/8TA HTUB1-3/8TA 1-3⁄8\1.375\(35mm)1.02\(26mm)2.05\(52mm)1.70\(43mm)0.91\(23mm)0.68\(17mm)1⁄4\500UB2TA HTUB2TA 2\2.00\(51mm)1.40\(36mm)2.80\(71mm)2.20\(56mm)1.19\(30mm)1.24\(31mm)3⁄8\150 1,220 (5.43 kN) 500UB3TA HTUB3TA 3\3.00\(76mm)1.95\(50mm)3.90\(99mm)3.00\(76mm)1.69\(43mm)1.24\(31mm)1⁄2\200 2,260 (10.05 kN)500UB4TA HTUB4TA 4\4.00\(102mm)2.52\(64mm)5.05\(128mm)3.70\(94mm)2.25\(57mm)1.24\(31mm)1⁄2\500UB5TA HTUB5TA 5\5.00\(127mm)3.25\(83mm)6.56\(167mm)4.50\(114mm)3.03\(77mm)1.24\(31mm) 1⁄2\500UB6TA HTUB6TA 6\6.00\(152mm)3.87\(98mm)7.75\(197mm)5.40\(137mm)3.56\(90mm)1.44\(37mm)5⁄8\250 3,620(16.10 kN) 500SUFFIXClamp Cushion ExampleNONE Electro-galvanized Thermoplastic elastomer UB1⁄ 2PA6 Stainless Steel, Type 316 Thermoplastic elastomer UB1⁄ 2PA6N6 – Stainless Steel, Type 316 Flame Retardant UB1⁄ 2PAN6N – Electro-galvanized UB1⁄ 2PANNH – Electro-galvanized Flame RetardantHalogen FreeUB1⁄ 2PANHNH6 – Stainless Steel,Type 316 UB1⁄ 2PANH6Alpha Series™-65°F to 340°F (-53°C to 170°C)-50°F to 275°F (-45°C to 135°C)Standard Extreme Temp
