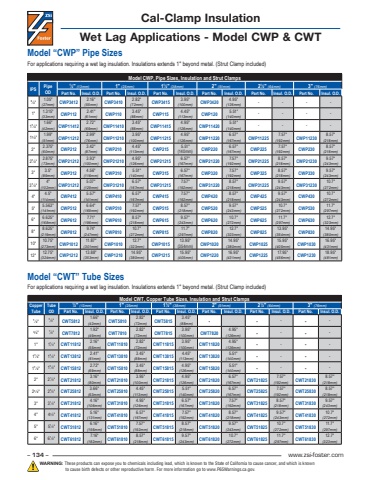

– 134 – www.zsi-foster.comWARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Model “CWP” Pipe SizesFor applications requiring a wet lag insulation. Insulations extends 1\cluded)Model CWP, Pipe Sizes, Insulation and Strut ClampsIPS Pipe OD1⁄2\1\11⁄2\2\21⁄2\3\Part No. Insul. O.D. Part No. Insul. O.D. Part No. Insul. O.D. Part No. Insul. O.D. Part No. Insul. O.D. Part No. Insul. O.D.3⁄4\1.05\ (27mm) CWP3412 2.16\(55mm) CWP3410 2.82\(72mm) CWP3415 3.95\(100mm) CWP3420 4.95\(126mm) - - - -1\1.315\ (33mm) CWP112 2.41\(61mm) CWP110 3.45\(88mm) CWP115 4.45\(113mm) CWP120 5.51\(140mm) - - - -11⁄4\1.66\ (42mm) CWP11412 2.72\(69mm) CWP11410 3.45\(88mm) CWP11415 4.95\(126mm) CWP11420 5.51\(140mm) - - - -11⁄2\1.99\ (51mm) CWP11212 2.99\(76mm) CWP11210 3.95\(100mm) CWP11215 4.95\(126mm) CWP11220 6.57\(167mm) CWP11225 7.57\(192mm) CWP11230 8.57\(218mm)2\2.375\ (60mm) CWP212 3.42\(87mm) CWP210 4.45\(113mm) CWP215 5.51\(140mm) CWP220 6.57\(167mm) CWP225 7.57\(192mm) CWP230 8.57\(218mm)21⁄2\2.875\ (73mm) CWP21212 3.93\(100mm) CWP21210 4.95\(126mm) CWP21215 6.57\(167mm) CWP21220 7.57\(192mm) CWP21225 8.57\(218mm) CWP21230 9.57\(243mm)3\3.5\ (89mm) CWP312 4.56\(116mm) CWP310 5.51\(140mm) CWP315 6.57\(167mm) CWP320 7.57\(192mm) CWP325 8.57\(218mm) CWP330 9.57\(243mm)31⁄2\4\ (102mm) CWP31212 5.07\(129mm) CWP31210 6.57\(167mm) CWP31215 7.57\(192mm) CWP31220 8.57\(218mm) CWP31225 9.57\(243mm) CWP31230 10.7\(272mm)4\4.5\ (114mm) CWP412 5.57\(141mm) CWP410 6.57\(167mm) CWP415 7.57\(192mm) CWP420 8.57\(218mm) CWP425 9.57\(243mm) CWP430 10.7\(272mm)5\5.563\ (141mm) CWP512 6.64\(169mm) CWP510 7.57\(192mm) CWP515 8.57\(218mm) CWP520 9.57\(243mm) CWP525 10.7\(272mm) CWP530 11.7\(297mm)6\6.625\ (168mm) CWP612 7.71\(196mm) CWP610 8.57\(218mm) CWP615 9.57\(243mm) CWP620 10.7\(272mm) CWP625 11.7\(297mm) CWP630 12.7\(323mm)8\8.625\ (219mm) CWP812 9.74\(247mm) CWP810 10.7\(272mm) CWP815 11.7\(297mm) CWP820 12.7\(323mm) CWP825 13.95\(354mm) CWP830 14.95\(380mm)10\10.75\ (273mm) CWP1012 11.87\(301mm) CWP1010 12.7\(323mm) CWP1015 13.95\(354mm) CWP1020 14.95\(380mm) CWP1025 15.95\(405mm) CWP1030 16.95\(431mm)12\12.75\ (324mm) CWP1212 13.88\(353mm) CWP1210 14.95\(380mm) CWP1215 15.95\(405mm) CWP1220 16.95\(431mm) CWP1225 17.95\(456mm) CWP1230 18.95\(481mm)Cal-Clamp InsulationWet Lag Applications - Model CWP & CWTModel CWT, Copper Tube Sizes, Insulation and Strut ClampsCopper TubeTube OD1⁄2\1\11⁄2\2\21⁄2\3\Part No. Insul. O.D. Part No. Insul. O.D. Part No. Insul. O.D. Part No. Insul. O.D. Part No. Insul. O.D. Part No. Insul. O.D.1⁄2\5⁄ 8\CWT5812 1.66\ (42mm) CWT5810 2.82\(72mm) CWT5815 3.45\(88mm) - - - - -3⁄4\7⁄ 8\CWT7812 1.92\ (49mm) CWT7810 2.82\(72mm) CWT7815 3.95\(100mm) CWT7820 4.95\(126mm) - - - -1\11⁄ 8\CWT11812 2.16\ (55mm) CWT11810 2.82\(72mm) CWT11815 3.95\(100mm) CWT11820 4.95\(126mm) - - - -11⁄4\13⁄ 8\CWT13812 2.41\ (61mm) CWT13810 3.45\(88mm) CWT13815 4.45\(113mm) CWT13820 5.51\(140mm) - - - -11⁄2\15⁄ 8\CWT15812 2.72\ (69mm) CWT15810 3.45\(88mm) CWT15815 4.95\(126mm) CWT15820 5.51\(140mm) - - - -2\21⁄ 8\CWT21812 3.16\ (80mm) CWT21810 3.95\(100mm) CWT21815 4.95\(126mm) CWT21820 6.57\(167mm) CWT21825 7.57\(192mm) CWT21830 8.57\(218mm)21⁄2\25⁄ 8\CWT25812 3.66\ (93mm) CWT25810 4.45\(113mm) CWT25815 5.51\(140mm) CWT25820 6.57\(167mm) CWT25825 7.57\(192mm) CWT25830 8.57\(218mm)3\31⁄ 8\CWT31812 4.16\ (106mm) CWT31810 4.95\(126mm) CWT31815 6.57\(167mm) CWT31820 7.57\(192mm) CWT31825 8.57\(218mm) CWT31830 9.57\(243mm)4\41⁄ 8\CWT41812 5.16\ (131mm) CWT41810 6.57\(167mm) CWT41815 7.57\(192mm) CWT41820 8.57\(218mm) CWT41825 9.57\(243mm) CWT41830 10.7\(272mm)5\51⁄ 8\CWT51812 6.16\ (156mm) CWT51810 7.57\(192mm) CWT51815 8.57\(218mm) CWT51820 9.57\(243mm) CWT51825 10.7\(272mm) CWT51830 11.7\(297mm)6\61⁄ 8\CWT61812 7.16\ (182mm) CWT61810 8.57\(218mm) CWT61815 9.57\(243mm) CWT61820 10.7\(272mm) CWT61825 11.7\(297mm) CWT61830 12.7\(323mm)Model “CWT” Tube SizesFor applications requiring a wet lag insulation. Insulations extends 1\cluded)
