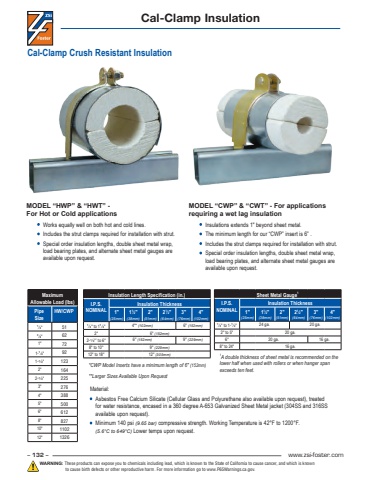

– 132 – www.zsi-foster.comWARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Cal-Clamp Crush Resistant InsulationMODEL “HWP” & “HWT” - For Hot or Cold applications• Works equally well on both hot and cold lines. • Includes the strut clamps required for installation with strut. • Special order insulation lengths, double sheet metal wrap, load bearing plates, and alternate sheet metal gauges are available upon request. MODEL “CWP” & “CWT” - For applications requiring a wet lag insulation• Insulations extends 1\• The minimum length for our “CWP” insert is 6” . • Includes the strut clamps required for installation with strut. • Special order insulation lengths, double sheet metal wrap, load bearing plates, and alternate sheet metal gauges are available upon request. Material:• Asbestos Free Calcium Silicate (Cellular Glass and Polyurethane also available upon request), treated for water resistance, encased in a 360 degree A-653 Galvanized Sheet Metal jacket (304SS and 316SS available upon request). • Minimum 140 psi (9.65 bar) compressive strength. Working Temperature is 42°F to 1200°F. (5.6°C to 649°C) Lower temps upon request.Maximum Allowable Load (lbs)Pipe SizeHW/CWP1⁄2\513⁄4\621\721-1⁄4\921-1⁄2\1232\1642-1⁄2\2253\2764\3885\5006\6128\82710\110212\1326Cal-Clamp InsulationSheet Metal Gauge1I.P.S. NOMINALInsulation Thickness1\(25mm)11⁄2\(38mm)2\(51mm)21⁄2\(64mm)3\(76mm)4\(102mm)1⁄2\⁄2\24 ga. 20 ga.2\20 ga.6\20 ga. 16 ga.8\16 ga.1A double thickness of sheet metal is recommended on the lower half when used with rollers or when hanger span exceeds ten feet.Insulation Length Specification (in.)I.P.S.NOMINALInsulation Thickness1\(25mm)11⁄2\(38mm)2\(51mm)21⁄2\(64mm)3\(76mm)4\(102mm)1⁄2\⁄2\4\6\2\6\2-1⁄2\6\9\8\9\12\12\*CWP Model Inserts have a minimum length of 6\**Larger Sizes Available Upon Request
