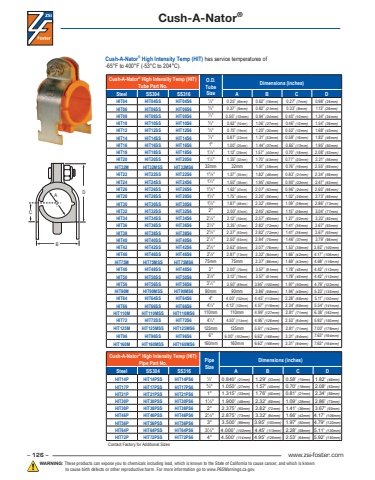

– 126 – www.zsi-foster.comWARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Cush-A-Nator® High Intensity Temp (HIT) has service temperatures of -65°F to 400°F (-53°C to 204°C). Cush-A-Nator® High Intensity Temp (HIT)Pipe Part No. Pipe SizeDimensions (inches)Steel SS304 SS316 A B C DHIT14P HIT14PSS HIT14PS6 1⁄2\0.840\1.29\0.58\1.82\HIT17P HIT17PSS HIT17PS6 3⁄4\1.050\1.57\0.70\2.08\HIT21P HIT21PSS HIT21PS6 1\1.315\1.76\0.81\2.34\HIT30P HIT30PSS HIT30PS6 11⁄2\1.900\2.32\1.09\2.86\HIT38P HIT38PSS HIT38PS6 2\2.375\2.82\1.41\3.67\HIT46P HIT46PSS HIT46PS6 21⁄2\2.875\3.32\1.66\4.17\HIT56P HIT56PSS HIT56PS6 3\3.500\3.95\1.97\4.79\HIT64P HIT64PSS HIT64PS6 31⁄2\4.000\4.45\2.28\5.11\HIT72P HIT72PSS HIT72PS6 4\4.500\4.95\2.53\5.92\Cush-A-Nator® High Intensity Temp (HIT) Tube Part No.O.D. Tube SizeDimensions (inches)Steel SS304 SS316 A B C DHIT04 HIT04SS HIT04S6 1⁄4\0.25\0.62\0.27\0.98\HIT06 HIT06SS HIT06S6 3⁄ 8\0.37\0.82\0.33\1.13\HIT08 HIT08SS HIT08S6 1⁄ 2\0.50\0.94\0.40\1.34\HIT10 HIT10SS HIT10S6 5⁄ 8\0.62\1.06\0.46\1.54\HIT12 HIT12SS HIT12S6 3⁄4\0.75\1.20\0.52\1.68\HIT14 HIT14SS HIT14S6 7⁄ 8\0.87\1.31\0.58\1.82\HIT16 HIT16SS HIT16S6 1\1.00\1.44\0.65\1.95\HIT18 HIT18SS HIT18S6 11⁄ 8\1.12\1.57\(40mm) 0.70\2.08\HIT20 HIT20SS HIT20S6 11⁄4\1.25\1.70\0.77\2.21\HIT32M HIT32MSS HIT32MS6 32mm 32mm 1.51\0.76\2.55\HIT22 HIT22SS HIT22S6 13⁄ 8\1.37\1.82\0.83\2.34\HIT24 HIT24SS HIT24S6 11⁄ 2\1.50\1.95\0.90\2.47\HIT26 HIT26SS HIT26S6 15⁄ 8\1.62\2.07\0.96\2.60\HIT28 HIT28SS HIT28S6 13⁄4\1.75\2.20\1.02\2.73\HIT30 HIT30SS HIT30S6 17⁄ 8\1.87\2.32\1.09\2.86\HIT32 HIT32SS HIT32S6 2\2.00\2.45\1.15\3.04\HIT34 HIT34SS HIT34S6 21⁄ 8\2.12\2.57\1.27\3.23\HIT36 HIT36SS HIT36S6 21⁄4\2.25\2.82\1.41\3.67\HIT38 HIT38SS HIT38S6 23⁄ 8\2.37\2.82\1.41\3.67\HIT40 HIT40SS HIT40S6 21⁄ 2\2.50\2.94\1.46\3.79\HIT42 HIT42SS HIT42S6 25⁄ 8\2.62\3.07\1.53\3.92\HIT46 HIT46SS HIT46S6 27⁄ 8\2.87\3.32\1.66\4.17\HIT75M HIT75MSS HIT75MS6 75mm 75mm 3.37\1.69\4.68\HIT48 HIT48SS HIT48S6 3\3.00\3.57\1.78\4.42\HIT50 HIT50SS HIT50S6 31⁄ 8\3.12\3.57\1.78\4.42\HIT56 HIT56SS HIT56S6 31⁄ 2\3.50\3.95\1.97\4.79\HIT90M HIT90MSS HIT90MS6 90mm 90mm 3.86\1.94\5.23\HIT64 HIT64SS HIT64S6 4\4.00\4.45\2.28\5.11\HIT66 HIT66SS HIT66S6 41⁄ 8\4.12\4.57\2.34\5.54\HIT110M HIT110MSS HIT110MS6 110mm 110mm 4.99\2.81\6.38\HIT72 HIT72SS HIT72S6 41⁄ 2\4.50\4.95\2.53\5.92\HIT125M HIT125MSS HIT125MS6 125mm 125mm 5.61\2.81\7.00\HIT96 HIT96SS HIT96S6 6\6.00\6.62\3.31\7.63\HIT160M HIT160MSS HIT160MS6 160mm 160mm 6.62\3.31\7.63\Contact Factory for Additional SizesCBD ACush-A-Nator®
