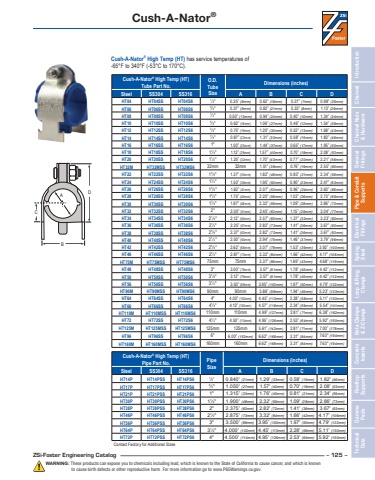

Technical Data Gamma Pads Rooftop Supports Concrete Inserts Beta Clamps & Z-Clamps Loop & Ring Clamps Spring Steel Electrical Fittings Pipe & Conduit Supports General Fittings Channel Nuts & Hardware Channel IntroductionZSi-Foster Engineering Catalog – 125 –WARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Cush-A-Nator® High Temp (HT) has service temperatures of -65°F to 340°F (-53°C to 170°C). Cush-A-Nator® High Temp (HT)Pipe Part No. Pipe SizeDimensions (inches)Steel SS304 SS316 A B C DHT14P HT14PSS HT14PS6 1⁄2\0.840\1.29\0.58\1.82\HT17P HT17PSS HT17PS6 3⁄4\1.050\1.57\0.70\2.08\HT21P HT21PSS HT21PS6 1\1.315\1.76\0.81\2.34\HT30P HT30PSS HT30PS6 11⁄2\1.900\2.32\1.09\2.86\HT38P HT38PSS HT38PS6 2\2.375\2.82\1.41\3.67\HT46P HT46PSS HT46PS6 21⁄2\2.875\3.32\1.66\4.17\HT56P HT56PSS HT56PS6 3\3.500\3.95\1.97\4.79\HT64P HT64PSS HT64PS6 31⁄2\4.000\4.45\2.28\5.11\HT72P HT72PSS HT72PS6 4\4.500\4.95\2.53\5.92\Cush-A-Nator® High Temp (HT) Tube Part No.O.D. Tube SizeDimensions (inches)Steel SS304 SS316 A B C DHT04 HT04SS HT04S6 1⁄4\0.25\0.62\0.27\0.98\HT06 HT06SS HT06S6 3⁄ 8\0.37\0.82\0.33\1.13\HT08 HT08SS HT08S6 1⁄ 2\0.50\0.94\0.40\1.34\HT10 HT10SS HT10S6 5⁄ 8\0.62\1.06\0.46\1.54\HT12 HT12SS HT12S6 3⁄4\0.75\1.20\0.52\1.68\HT14 HT14SS HT14S6 7⁄ 8\0.87\1.31\0.58\1.82\HT16 HT16SS HT16S6 1\1.00\1.44\0.65\1.95\HT18 HT18SS HT18S6 11⁄ 8\1.12\1.57\(40mm) 0.70\2.08\HT20 HT20SS HT20S6 11⁄4\1.25\1.70\0.77\2.21\HT32M HT32MSS HT32MS6 32mm 32mm 1.51\0.76\2.55\HT22 HT22SS HT22S6 13⁄ 8\1.37\1.82\0.83\2.34\HT24 HT24SS HT24S6 11⁄ 2\1.50\1.95\0.90\2.47\HT26 HT26SS HT26S6 15⁄ 8\1.62\2.07\0.96\2.60\HT28 HT28SS HT28S6 13⁄4\1.75\2.20\1.02\2.73\HT30 HT30SS HT30S6 17⁄ 8\1.87\2.32\1.09\2.86\HT32 HT32SS HT32S6 2\2.00\2.45\1.15\3.04\HT34 HT34SS HT34S6 21⁄ 8\2.12\2.57\1.27\3.23\HT36 HT36SS HT36S6 21⁄4\2.25\2.82\1.41\3.67\HT38 HT38SS HT38S6 23⁄ 8\2.37\2.82\1.41\3.67\HT40 HT40SS HT40S6 21⁄ 2\2.50\2.94\1.46\3.79\HT42 HT42SS HT42S6 25⁄ 8\2.62\3.07\1.53\3.92\HT46 HT46SS HT46S6 27⁄ 8\2.87\3.32\1.66\4.17\HT75M HT75MSS HT75MS6 75mm 75mm 3.37\1.69\4.68\HT48 HT48SS HT48S6 3\3.00\3.57\1.78\4.42\HT50 HT50SS HT50S6 31⁄ 8\3.12\3.57\1.78\4.42\HT56 HT56SS HT56S6 31⁄ 2\3.50\3.95\1.97\4.79\HT90M HT90MSS HT90MS6 90mm 90mm 3.86\1.94\5.23\HT64 HT64SS HT64S6 4\4.00\4.45\2.28\5.11\HT66 HT66SS HT66S6 41⁄ 8\4.12\4.57\2.34\5.54\HT110M HT110MSS HT110MS6 110mm 110mm 4.99\2.81\6.38\HT72 HT72SS HT72S6 41⁄ 2\4.50\4.95\2.53\5.92\HT125M HT125MSS HT125MS6 125mm 125mm 5.61\2.81\7.00\HT96 HT96SS HT96S6 6\6.00\6.62\3.31\7.63\HT160M HT160MSS HT160MS6 160mm 160mm 6.62\3.31\7.63\Contact Factory for Additional SizesCush-A-Nator®CBD A
