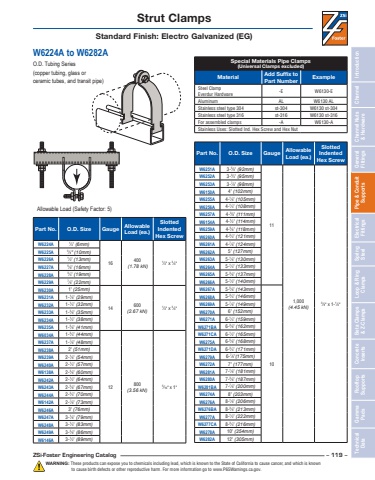

Technical Data Gamma Pads Rooftop Supports Concrete Inserts Beta Clamps & Z-Clamps Loop & Ring Clamps Spring Steel Electrical Fittings Pipe & Conduit Supports General Fittings Channel Nuts & Hardware Channel IntroductionZSi-Foster Engineering Catalog – 119 –WARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Strut ClampsStandard Finish: Electro Galvanized (EG)W6224A to W6282AO.D. Tubing Series(copper tubing, glass or ceramic tubes, and transit pipe)Special Materials Pipe Clamps (Universal Clamps excluded)Material Add Suffix to Part Number ExampleSteel Clamp Everdur Hardware -E W6130-EAluminum AL W6130 ALStainless steel type 304 st-304 W6130 st-304Stainless steel type 316 st-316 W6130 st-316For assembled clamps -A W6130-AStainless Uses: Slotted Ind. Hex Screw and Hex Nut Allowable Load (Safety Factor: 5)Part No. O.D. Size Gauge Allowable Load (ea.)Slotted Indented Hex ScrewW6224A 1⁄4\16 400 (1.78 kN)1⁄4\⁄4\W6225A 3⁄8\W6226A 1⁄2\W6227A 5⁄8\W6228A 3⁄4\W6229A 7⁄8\W6230A 1\14 600 (2.67 kN)1⁄4\⁄4\W6231A 1-1⁄8\W6232A 1-1⁄4\W6233A 1-3⁄8\W6234A 1-1⁄2\W6235A 1-5⁄8\W6034A 1-3⁄4\12 800 (3.56 kN)5⁄16\W6237A 1-7⁄8\W6238A 2\W6239A 2-1⁄8\W6240A 2-1⁄4\W6138A 2-3⁄8\W6242A 2-1⁄2\W6243A 2-5⁄8\W6244A 2-3⁄4\W6142A 2-7⁄8\W6246A 3\W6247A 3-1⁄8\W6248A 3-1⁄4\W6249A 3-3⁄8\W6146A 3-1⁄2\Part No. O.D. Size Gauge Allowable Load (ea.)Slotted Indented Hex ScrewW6251A 3-5⁄8\111,000 (4.45 kN)3⁄8\⁄4\W6252A 3-3⁄4\W6253A 3-7⁄8\W6150A 4\W6255A 4-1⁄8\W6256A 4-1⁄4\W6257A 4-3⁄8\W6154A 4-1⁄2\W6259A 4-5⁄8\W6260A 4-3⁄4\W6261A 4-7⁄8\W6262A 5\W6263A 5-1⁄8\W6264A 5-1⁄4\W6265A 5-3⁄8\W6266A 5-1⁄2\W6267A 5-5⁄8\10W6268A 5-3⁄4\W6269A 5-7⁄8\W6270A 6\W6271A 6-1⁄4\W6271BA 6-3⁄8\W6271CA 6-1⁄2\W6275A 6-5⁄8\W6271DA 6-3⁄4\W6279A 6-7⁄8\W6272A 7\W6281A 7-1⁄8\W6280A 7-3⁄8\W6281BA 7-7⁄8\W6274A 8\W6276A 8-1⁄8\W6276BA 8-3⁄8\W6277A 8-1⁄2\W6277CA 8-3⁄4\W6278A 10\W6282A 12\
