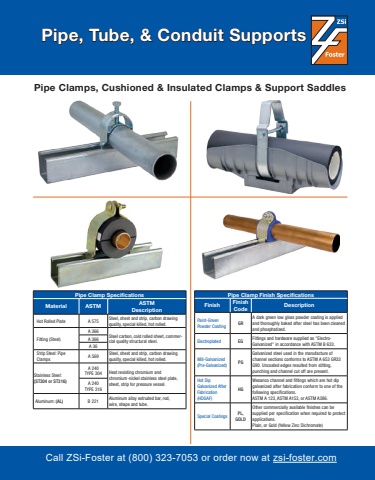

Call ZSi-Foster at (800) 323-7053 or order now at zsi-foster.comPipe Clamps, Cushioned & Insulated Clamps & Support SaddlesPipe, Tube, & Conduit SupportsPipe Clamp Finish SpecificationsFinish Finish Code DescriptionPaint-Green Powder Coating GRA dark green low gloss powder coating is applied and thoroughly baked after steel has been cleaned and phosphatized.Electroplated EG Fittings and hardware supplied as \,Galvanized\Mill-Galvanized (Pre-Galvanized) PGGalvanized steel used in the manufacture of channel sections conforms to ASTM A 653 GR33 G90. Uncoated edges resulted from slitting, punching and channel cut off are present.Hot Dip Galvanized After Fabrication (HDGAF)HGWesanco channel and fittings which are hot dip galvanized after fabrication conform to one of the following specifications. ASTM A 123, ASTM A153, or ASTM A386.Special Coatings PL, GOLDOther commercially available finishes can be supplied per specification when required to protect applications. Plain, or Gold (Yellow Zinc Dichromate) Pipe Clamp SpecificationsMaterial ASTM ASTM DescriptionHot Rolled Plate A 575 Steel, sheet and strip, carbon drawing quality, special killed, hot rolled.Fitting (Steel) A 366Steel carbon, cold rolled sheet, commercial quality structural steel. A 366 A 36 Strip Steel: Pipe Clamps A 569 Steel, sheet and strip, carbon drawing quality, special killed, hot rolled.Stainless Steel: (ST304 or ST316)A 240 TYPE 304 Heat resisting chromium and chromium-nickel stainless steel plate, A 240 sheet, strip for pressure vessel.TYPE 316Aluminum: (AL) B 221 Aluminum alloy extruded bar, rod, wire, shape and tube.
