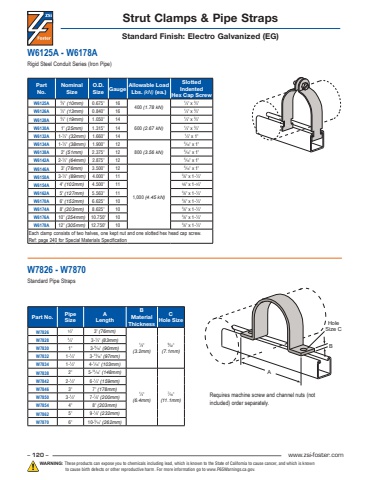

– 120 – www.zsi-foster.comWARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Strut Clamps & Pipe StrapsStandard Finish: Electro Galvanized (EG)W6125A - W6178ARigid Steel Conduit Series (Iron Pipe)Part No.Nominal SizeO.D. Size Gauge Allowable Load Lbs. (kN) (ea.)Slotted Indented Hex Cap ScrewW6125A 3⁄8\0.675\ 16400 (1.78 kN)1⁄4\⁄4\W6126A 1⁄2\0.840\ 16 1⁄4\⁄4\W6128A 3⁄4\1.050\ 14600 (2.67 kN)1⁄4\⁄4\W6130A 1\1.315\ 14 1⁄4\⁄4\W6132A 1-1⁄4\1.660\ 14 1⁄4\W6134A 1-1⁄2\1.900\ 12800 (3.56 kN)5⁄16\W6138A 2\2.375\ 12 5⁄16\W6142A 2-1⁄2\2.875\ 12 5⁄16\W6146A 3\3.500\ 121,000 (4.45 kN)5⁄16\W6150A 3-1⁄2\4.000\ 11 3⁄8\⁄4\W6154A 4\4.500\ 11 3⁄8\⁄4\W6162A 5\5.563\ 11 3⁄8\⁄4\W6170A 6\6.625\ 10 3⁄8\⁄4\W6174A 8\8.625\ 10 3⁄8\⁄4\W6176A 10\10.750\ 10 3⁄8\⁄4\W6178A 12\12.750\ 10 3⁄8\⁄4\Each clamp consists of two halves, one kept nut and one slotted hex head cap screw. Ref: page 240 for Special Materials SpecificationRequires machine screw and channel nuts (not included) order separately. W7826 - W7870Standard Pipe StrapsAHoleSize CBPart No. Pipe SizeA LengthB Material ThicknessC Hole SizeW7826 1⁄2\ 3\1⁄8\(3.2mm)9⁄32\(7.1mm)W7828 3⁄4\ 3-1⁄4\W7830 1\ 3-9⁄16\W7832 1-1⁄4\ 3-13⁄16\W7834 1-1⁄2\ 4-1⁄16\W7838 2\ 5-13⁄16\1⁄4\(6.4mm)7⁄16\(11.1mm)W7842 2-1⁄2\ 6-1⁄4\W7846 3\ 7\W7850 3-1⁄2\ 7-7⁄8\W7854 4\ 8\W7862 5\ 9-1⁄8\W7870 6\ 10-5⁄16\
