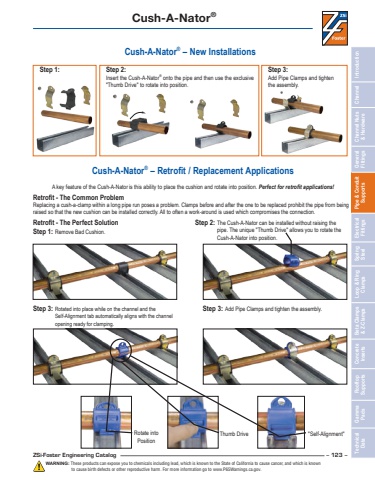

Technical Data Gamma Pads Rooftop Supports Concrete Inserts Beta Clamps & Z-Clamps Loop & Ring Clamps Spring Steel Electrical Fittings Pipe & Conduit Supports General Fittings Channel Nuts & Hardware Channel IntroductionZSi-Foster Engineering Catalog – 123 –WARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Cush-A-Nator®Cush-A-Nator® – New InstallationsCush-A-Nator® – Retrofit / Replacement ApplicationsRetrofit - The Perfect Solution Step 1: Remove Bad Cushion.Step 2: The Cush-A-Nator can be installed without raising the pipe. The unique \Cush-A-Nator into position. Step 3: Rotated into place while on the channel and the Self-Alignment tab automatically aligns with the channel opening ready for clamping.A key feature of the Cush-A-Nator is this ability to place the cushion and rotate into position. Perfect for retrofit applications!Step 3: Add Pipe Clamps and tighten the assembly.Step 1: Step 2:Insert the Cush-A-Nator® onto the pipe and then use the exclusive \ Drive\Step 3:Add Pipe Clamps and tighten the assembly.Retrofit - The Common Problem Replacing a cush-a-clamp within a long pipe run poses a problem. Clamps before and after the one to be replaced prohibit the pipe from being raised so that the new cushion can be installed correctly. All to often a work-around is used which compromises the connection.Rotate into Thumb Drive \Position
