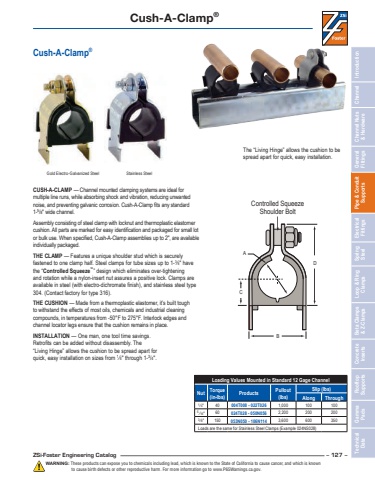

Technical Data Gamma Pads Rooftop Supports Concrete Inserts Beta Clamps & Z-Clamps Loop & Ring Clamps Spring Steel Electrical Fittings Pipe & Conduit Supports General Fittings Channel Nuts & Hardware Channel IntroductionZSi-Foster Engineering Catalog – 127 –WARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.The “Living Hinge” allows the cushion to be spread apart for quick, easy installation. Cush-A-Clamp®CUSH-A-CLAMP — Channel mounted clamping systems are ideal for multiple line runs, while absorbing shock and vibration, reducing unwanted noise, and preventing galvanic corrosion. Cush-A-Clamp fits any standard 1-5/8\Assembly consisting of steel clamp with locknut and thermoplastic elastomer cushion. All parts are marked for easy identification and packaged for small lot or bulk use. When specified, Cush-A-Clamp assemblies up to 2\individually packaged.THE CLAMP — Features a unique shoulder stud which is securely fastened to one clamp half. Steel clamps for tube sizes up to 1-3⁄8\the “Controlled Squeeze™” design which eliminates over-tightening and rotation while a nylon-insert nut assures a positive lock. Clamps are available in steel (with electro-dichromate finish), and stainless steel type 304. (Contact factory for type 316).THE CUSHION — Made from a thermoplastic elastomer, it’s built tough to withstand the effects of most oils, chemicals and industrial cleaning compounds, in temperatures from -50°F to 275°F. Interlock edges and channel locator legs ensure that the cushion remains in place.INSTALLATION — One man, one tool time savings. Retrofits can be added without disassembly. The “Living Hinge” allows the cushion to be spread apart for quick, easy installation on sizes from 1⁄4\Gold Electro-Galvanized Steel Stainless SteelLoading Values Mounted in Standard 12 Gage ChannelNut Torque (in-lbs) Products Pullout (lbs)Slip (lbs)Along Through1 ⁄4\ 40 004T008 - 022T026 1,000 100 1005 ⁄16\ 60 024T028 - 050N056 2,200 200 2003 ⁄8\ 150 053N050 - 106N114 3,600 600 350Loads are the same for Stainless Steel Clamps (Example 024NS028)Cush-A-Clamp®CBDControlled SqueezeShoulder BoltA
