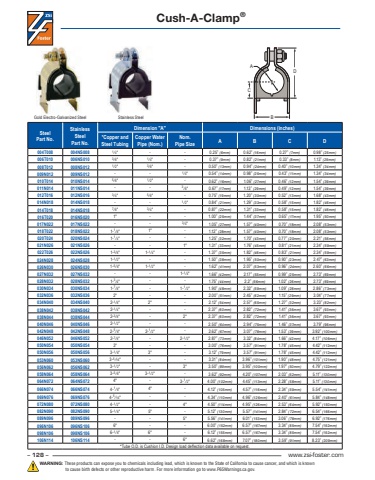

– 128 – www.zsi-foster.comWARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Gold Electro-Galvanized Steel Stainless SteelSteel Part No.Stainless Steel Part No.Dimension \Dimensions (inches)*Copper and Steel TubingCopper Water Pipe (Nom.)Nom. Pipe Size A B C D004T008 004NS008 1 ⁄4\- - 0.25\0.62\0.27\0.98\006T010 006NS010 3 ⁄8\1 ⁄4\- 0.37\0.82\0.33\1.13\008T012 008NS012 1 ⁄2\3 ⁄8\- 0.50\0.94\0.40\1.34\009N012 009NS012 - - 1 ⁄4\0.54\0.98\0.43\1.34\010T014 010NS014 5 ⁄8\1 ⁄2\- 0.62\1.06\0.46\1.54\011N014 011NS014 - - 3 ⁄8\0.67\1.13\0.49\1.54\012T016 012NS016 3 ⁄4\5 ⁄8\- 0.75\1.20\0.52\1.68\014N018 014NS018 - - 1 ⁄2\0.84\1.29\0.58\1.82\014T018 014NS018 7⁄8\3 ⁄4\- 0.87\1.31\0.58\1.82\016T020 016NS020 1\- - 1.00\1.44\0.65\1.95\017N022 017NS022 - - 3 ⁄4\1.05\1.57\0.70\2.08\018T022 018NS022 1-1 ⁄8\1\- 1.12\1.57\0.70\2.08\020T024 020NS024 1-1 ⁄4\- - 1.25\1.70\0.77\2.21\021N026 021NS026 - - 1\1.31\1.76\0.81\2.34\022T026 022NS026 1-3 ⁄8\1-1 ⁄4\- 1.37\1.82\0.83\2.34\024N028 024NS028 1-1 ⁄2\- - 1.50\1.95\0.90\2.47\026N030 026NS030 1-5 ⁄8\1-1 ⁄2\- 1.62\2.07\0.96\2.60\027N032 027NS032 - - 1-1 ⁄4\1.66\2.17\0.99\2.73\028N032 028NS032 1-3 ⁄4\- - 1.75\2.2\1.02\2.73\030N034 030NS034 1-7⁄8\- 1-1 ⁄2\1.90\2.32\1.09\2.86\032N036 032NS036 2\- - 2.00\2.45\1.15\3.04\034N040 034NS040 2-1 ⁄8\2\- 2.12\2.57\1.27\3.23\038N042 038NS042 2-1 ⁄4\- - 2.37\2.82\1.41\3.67\038N044 038NS044 2-3 ⁄8\- 2\2.37\2.82\1.41\3.67\040N046 040NS046 2-1 ⁄2\- - 2.50\2.94\1.46\3.79\042N048 042NS048 2-5 ⁄8\2-1 ⁄2\- 2.62\3.07\1.53\3.92\046N052 046NS052 2-7⁄8\- 2-1 ⁄2\2.87\3.32\1.66\4.17\050N054 050NS054 3\- - 3.00\3.57\1.78\4.42\050N056 050NS056 3-1 ⁄8\3\- 3.12\3.57\1.78\4.42\053N060 053NS060 3-5 ⁄16\- - 3.31\3.96\1.90\4.75\056N062 056NS062 3-1 ⁄2\- 3\3.50\3.95\1.97\4.79\058N064 058NS064 3-5 ⁄8\3-1 ⁄2\- 3.62\4.20\2.03\5.11\064N072 064NS072 4\- 3-1 ⁄2\4.00\4.45\2.28\5.11\066N074 066NS074 4-1 ⁄8\4\- 4.12\4.57\2.34\5.54\069N076 069NS076 4-5 ⁄16\- - 4.34\4.96\2.40\5.84\072N080 072NS080 4-1 ⁄2\- 4\4.50\4.95\2.53\5.92\082N090 082NS090 5-1 ⁄8\5\- 5.12\5.57\2.84\6.54\089N096 089NS096 - - 5\5.56\6.01\3.06\6.92\096N106 096NS106 6\- - 6.00\6.57\3.34\7.54\098N106 098NS106 6-1 ⁄8\6\- 6.12\6.57\3.34\7.54\106N114 106NS114 - - 6\6.62\7.07\3.59\8.23\*Tube O.D. is Cushion I.D. Design load deflection data available on request.Cush-A-Clamp®CBDA
