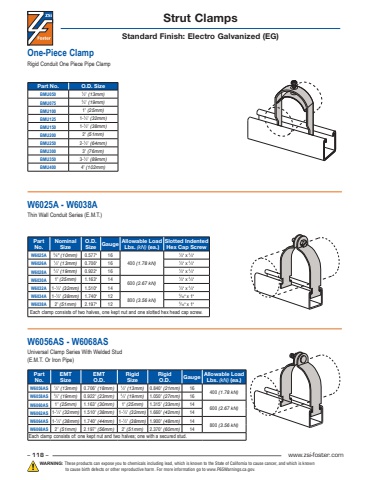

– 118 – www.zsi-foster.comWARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Strut ClampsStandard Finish: Electro Galvanized (EG)Part No. O.D. SizeBMU050 1⁄2\BMU075 3⁄4\BMU100 1\BMU125 1-1⁄4\BMU150 1-1⁄2\BMU200 2\BMU250 2-1⁄2\BMU300 3\BMU350 3-1⁄2\BMU400 4\One-Piece ClampRigid Conduit One Piece Pipe ClampW6025A - W6038AThin Wall Conduit Series (E.M.T.)Part No.Nominal SizeO.D. Size Gauge Allowable Load Lbs. (kN) (ea.)Slotted Indented Hex Cap ScrewW6025A 3⁄8\0.577\16400 (1.78 kN)1⁄4\⁄4\W6026A 1⁄2\0.706\16 1⁄4\⁄4\W6028A 3⁄4\0.922\16 1⁄4\⁄4\W6030A 1\1.163\14600 (2.67 kN)1⁄4\⁄4\W6032A 1-1⁄4\1.510\14 1⁄4\⁄4\W6034A 1-1⁄2\1.740\12800 (3.56 kN)5⁄16\W6038A 2\2.197\12 5⁄16\ Each clamp consists of two halves, one kept nut and one slotted hex head cap screw.W6056AS - W6068ASUniversal Clamp Series With Welded Stud (E.M.T. Or Iron Pipe)Part No.EMT SizeEMT O.D.Rigid SizeRigid O.D. Gauge Allowable Load Lbs. (kN) (ea.)W6056AS 1⁄2\0.706\1⁄2\0.840\16400 (1.78 kN) W6058AS 3⁄4\0.922\3⁄4\1.050\16W6060AS 1\1.163\1\1.315\14600 (2.67 kN) W6062AS 1-1⁄4\1.510\1-1⁄4\1.660\14W6064AS 1-1⁄2\1.740\1-1⁄2\1.900\14800 (3.56 kN) W6068AS 2\2.197\2\2.370\14Each clamp consists of: one kept nut and two halves; one with a secured stud.
