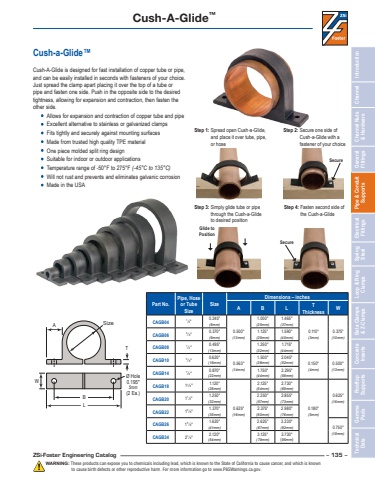

Technical Data Gamma Pads Rooftop Supports Concrete Inserts Beta Clamps & Z-Clamps Loop & Ring Clamps Spring Steel Electrical Fittings Pipe & Conduit Supports General Fittings Channel Nuts & Hardware Channel IntroductionZSi-Foster Engineering Catalog – 135 –WARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Cush-A-Glide™SizeLBAØ Hole0.195\5mm(2 Ea.)TWCush-A-Glide is designed for fast installation of copper tube or pipe, and can be easily installed in seconds with fasteners of your choice. Just spread the clamp apart placing it over the top of a tube or pipe and fasten one side. Push in the opposite side to the desired tightness, allowing for expansion and contraction, then fasten the other side. • Allows for expansion and contraction of copper tube and pipe• Excellent alternative to stainless or galvanized clamps• Fits tightly and securely against mounting surfaces• Made from trusted high quality TPE material • One piece molded split ring design• Suitable for indoor or outdoor applications• Temperature range of -50°F to 275°F (-45°C to 135°C)• Will not rust and prevents and eliminates galvanic corrosion• Made in the USA Step 4: Fasten second side of the Cush-a-GlideCush-a-Glide™Part No.Pipe, Hose or Tube SizeSizeDimensions – inchesA B L T Thickness WCAGB04 1 ⁄4\0.245\(6mm)0.500\(13mm)1.000\(25mm)1.465\(37mm)0.110\(3mm)0.375\(10mm) CAGB06 3 ⁄8\0.370\(9mm)1.125\(29mm)1.590\(40mm)CAGB08 1 ⁄2\0.495\(13mm)1.250\(32mm)1.715\(44mm)CAGB10 5 ⁄8\0.620\(16mm) 0.563\(14mm)1.500\(38mm)2.045\(52mm) 0.150\(4mm)0.500\(13mm)CAGB14 7⁄8\0.870\(22mm)1.750\(44mm)2.295\(58mm)CAGB18 11 ⁄8\1.120\(28mm)0.625\(16mm)2.125\(54mm)2.730\(69mm)0.180\(5mm)0.625\(16mm) CAGB20 11 ⁄4\1.250\(32mm)2.250\(57mm)2.855\(73mm)CAGB22 13 ⁄8\1.370\(35mm)2.375\(60mm)2.980\(76mm)CAGB26 15 ⁄8\1.620\(41mm)2.625\(67mm)3.230\(82mm) 0.750\(19mm)CAGB34 21 ⁄8\2.120\(54mm)3.125\(79mm)3.730\(95mm)Glide to PositionSecureSecureStep 1: Spread open Cush-a-Glide, and place it over tube, pipe, or hoseStep 2: Secure one side of Cush-a-Glide with a fastener of your choiceStep 3: Simply glide tube or pipe through the Cush-a-Glide to desired position
