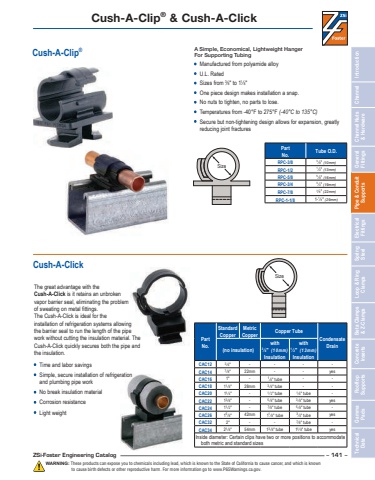

Technical Data Gamma Pads Rooftop Supports Concrete Inserts Beta Clamps & Z-Clamps Loop & Ring Clamps Spring Steel Electrical Fittings Pipe & Conduit Supports General Fittings Channel Nuts & Hardware Channel IntroductionZSi-Foster Engineering Catalog – 141 –WARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.A Simple, Economical, Lightweight Hanger For Supporting Tubing• Manufactured from polyamide alloy• U.L. Rated• Sizes from 3⁄8\⁄8\• One piece design makes installation a snap.• No nuts to tighten, no parts to lose.• Temperatures from -40°F to 275°F (-40°C to 135°C)• Secure but non-tightening design allows for expansion, greatly reducing joint fracturesSizePart No. Tube O.D.RPC-3/8 3⁄8\RPC-1/2 1⁄2\RPC-5/8 5⁄8\RPC-3/4 3⁄4\RPC-7/8 7⁄8\RPC-1-1/8 1-1⁄8\Cush-A-Clip®Cush-A-Clip® & Cush-A-ClickCush-A-ClickPart No.Standard CopperMetric Copper Copper TubeCondensate Drain(no insulation)with 3⁄8\Insulationwith 1⁄2\InsulationCAC12 3 ⁄4\- - - -CAC14 7⁄8\22mm - - yesCAC16 1\- 1 ⁄4\- -CAC18 11 ⁄8\28mm 3 ⁄8\- -CAC20 11 ⁄4\- 1 ⁄2\1 ⁄4\-CAC22 13 ⁄8\- 5 ⁄8\3 ⁄8\yesCAC24 11 ⁄2\- 7⁄8\5 ⁄8\-CAC26 15 ⁄8\42mm 11 ⁄8\3 ⁄4\yesCAC32 2\- - 7⁄8\-CAC34 21 ⁄8\54mm 13 ⁄8\11 ⁄8\yesInside diameter: Certain clips have two or more positions to accommodate both metric and standard sizesThe great advantage with the Cush-A-Click is it retains an unbroken vapor barrier seal, eliminating the problem of sweating on metal fittings. The Cush-A-Click is ideal for the installation of refrigeration systems allowing the barrier seal to run the length of the pipe work without cutting the insulation material. The Cush-A-Click quickly secures both the pipe and the insulation.• Time and labor savings• Simple, secure installation of refrigeration and plumbing pipe work• No break insulation material• Corrosion resistance• Light weightSize
