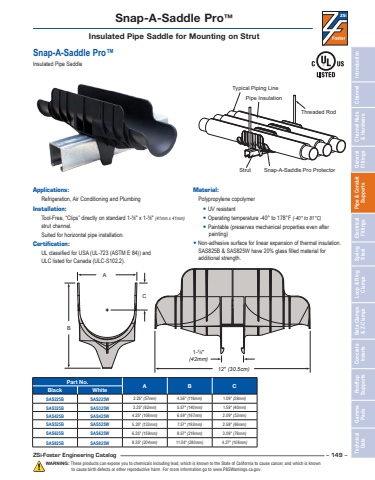

Technical Data Gamma Pads Rooftop Supports Concrete Inserts Beta Clamps & Z-Clamps Loop & Ring Clamps Spring Steel Electrical Fittings Pipe & Conduit Supports General Fittings Channel Nuts & Hardware Channel IntroductionZSi-Foster Engineering Catalog – 149 –WARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Part No.A B CBlack WhiteSAS225B SAS225W 2.25\4.56\1.09\SAS325B SAS325W 3.25\5.57\1.59\SAS425B SAS425W 4.25\6.59\2.09\SAS525B SAS525W 5.25\7.57\2.58\SAS625B SAS625W 6.25\8.57\3.09\SAS825B SAS825W 8.25\11.04\4.27\Typical Piping LinePipe InsulationThreaded RodStrut Snap-A-Saddle Pro ProtectorACB1-5⁄8\(42mm)12\Applications:Refrigeration, Air Conditioning and PlumbingInstallation:Tool-Free, “Clips” directly on standard 1-5⁄8\⁄8\strut channel.Suited for horizontal pipe installation.Certification:UL classified for USA (UL-723 (ASTM E 84)) and ULC listed for Canada (ULC-S102.2).Material:Polypropylene copolymer • UV resistant• Operating temperature -40° to 178°F (-40° to 81°C)• Paintable (preserves mechanical properties even after painting)• Non-adhesive surface for linear expansion of thermal insulation. SAS825B & SAS825W have 20% glass filled material for additional strength.Snap-A-Saddle Pro™Insulated Pipe Saddle for Mounting on StrutSnap-A-Saddle Pro™Insulated Pipe Saddle
