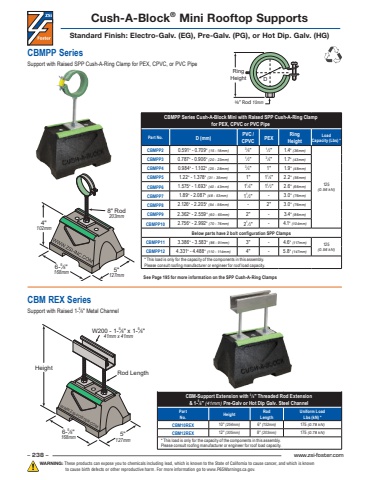

– 238 – www.zsi-foster.comWARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.CBMPP SeriesSupport with Raised SPP Cush-A-Ring Clamp for PEX, CPVC, or PVC PipeSee Page 195 for more information on the SPP Cush-A-Ring ClampsCush-A-Block® Mini Rooftop SupportsStandard Finish: Electro-Galv. (EG), Pre-Galv. (PG), or Hot Dip. Galv. (HG)4\102mm5\127mm8\203mm6-5⁄8\168mmRingHeight3⁄8” Rod 10mmDCBM REX SeriesSupport with Raised 1-5⁄8\CBMPP Series Cush-A-Block Mini with Raised SPP Cush-A-Ring Clamp for PEX, CPVC or PVC PipePart No. D (mm) PVC / CPVC PEX Ring HeightLoad Capacity (Lbs) *CBMPP2 0.591\3⁄8\1⁄2\1.4\125(0.56 kN)CBMPP3 0.787\1⁄2\3⁄4\1.7\CBMPP4 0.984\3⁄4\1\1.9\CBMPP5 1.22\1\11⁄4\2.2\CBMPP6 1.575\11⁄4\11⁄2\2.6\CBMPP7 1.89\11⁄2\- 3.0\CBMPP8 2.126\- 2\3.0\CBMPP9 2.362\2\- 3.4\CBMPP10 2.756\21⁄2\- 4.1\Below parts have 2 bolt configuration SPP ClampsCBMPP11 3.386\3\- 4.6\125(0.56 kN) CBMPP12 4.331\4\- 5.8\* This load is only for the capacity of the components in this assembly. Please consult roofing manufacturer or engineer for roof load capacity.5\127mm6-5⁄8\168mmHeightW200 - 1-5⁄8\⁄8\41mm x 41mmRod LengthWWW.ZSI-FOSTER.COMCBM-Support Extension with 3⁄8\& 1-5⁄8\PartNo. Height Rod LengthUniform Load Lbs (kN) *CBM10REX 10\6\175 (0.78 kN)CBM12REX 12\8\175 (0.78 kN)* This load is only for the capacity of the components in this assembly. Please consult roofing manufacturer or engineer for roof load capacity.
