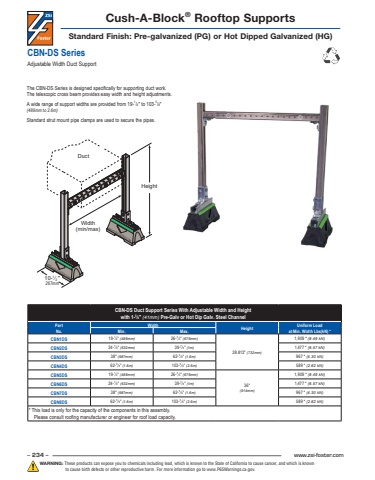

– 234 – www.zsi-foster.comWARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.CBN-DS SeriesAdjustable Width Duct SupportCush-A-Block® Rooftop SupportsStandard Finish: Pre-galvanized (PG) or Hot Dipped Galvanized (HG)CBN-DS Duct Support Series With Adjustable Width and Height with 1-5⁄8\PartNo.Width Height Uniform Load Min. Max. at Min. Width Lbs(kN) *CBN1DS 19-1⁄4\26-3⁄4\28.813\1,909 * (8.49 kN)CBN2DS 24-7⁄ 8\39-7⁄ 8\1,477 * (6.57 kN)CBN3DS 38\62-3⁄ 8\967 * (4.30 kN)CBN4DS 62-3⁄ 8\103-5⁄ 8\589 * (2.62 kN)CBN5DS 19-1⁄4\26-3⁄4\36\(914mm)1,909 * (8.49 kN)CBN6DS 24-7⁄ 8\39-7⁄ 8\1,477 * (6.57 kN)CBN7DS 38\62-3⁄ 8\967 * (4.30 kN)CBN8DS 62-3⁄ 8\103-5⁄ 8\589 * (2.62 kN)* This load is only for the capacity of the components in this assembly. Please consult roofing manufacturer or engineer for roof load capacity.The CBN-DS Series is designed specifically for supporting duct work. The telescopic cross beam provides easy width and height adjustments.A wide range of support widths are provided from 19-1/4\/8\(489mm to 2.6m)Standard strut mount pipe clamps are used to secure the pipes.WWW.ZSI-FOSTER.COMWWW.ZSI-FOSTER.COMDuctHeightWidth(min/max)10-1⁄2 \267mm
