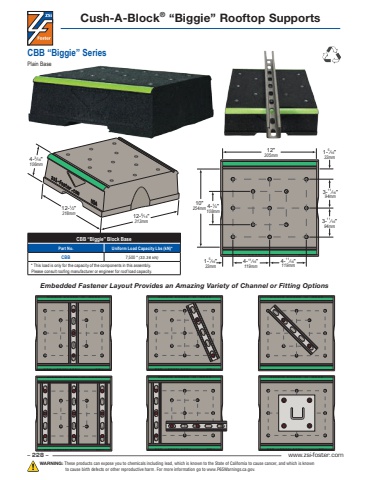

– 228 – www.zsi-foster.comWARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Cush-A-Block® “Biggie” Rooftop SupportsEmbedded Fastener Layout Provides an Amazing Variety of Channel or Fitting Options3-11⁄16\94mm1-5⁄16\33mm1-5⁄16\33mm3-11⁄16\94mm4-1⁄4\108mm10\254mm12\305mm4-11⁄16\119mm4-11⁄16\119mm12-1⁄2\318mm4-3⁄16\106mm12-5⁄16\313mmCBB “Biggie” Block BasePart No. Uniform Load Capacity Lbs (kN)*CBB 7,500 * (33.36 kN)* This load is only for the capacity of the components in this assembly. Please consult roofing manufacturer or engineer for roof load capacity.CBB “Biggie” SeriesPlain Base
