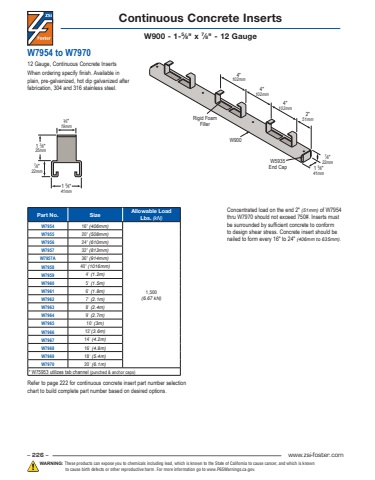

– 226 – www.zsi-foster.comWARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Continuous Concrete Inserts W900 - 1-5⁄8\⁄8\W7954 to W797012 Gauge, Continuous Concrete InsertsWhen ordering specify finish. Available in plain, pre-galvanized, hot dip galvanized after fabrication, 304 and 316 stainless steel.Concentrated load on the end 2\thru W7970 should not exceed 750#. Inserts must be surrounded by sufficient concrete to conform to design shear stress. Concrete insert should be nailed to form every 16\Part No. Size Allowable Load Lbs. (kN)W7954 16\1,500 (6.67 kN)W7955 20\W7956 24\W7957 32\W7957A 36\W7958 40\W7959 4' (1.2m)W7960 5' (1.5m)W7961 6' (1.8m)W7962 7' (2.1m)W7963 8' (2.4m)W7964 9' (2.7m)W7965 10' (3m)W7966 12'(3.6m)W7967 14' (4.2m)W7968 16' (4.8m)W7969 18' (5.4m)W7970 20' (6.1m)* W75953 utilizes tab channel (punched & anchor caps)7⁄8\22mm2\51mm4\102mmRigid FoamFiller4\102mm4\102mm1 5⁄8\41mmW5935End CapW9001 5⁄8\41mm1 3⁄8\35mm3⁄4\19mm7⁄8\22mmRefer to page 222 for continuous concrete insert part number selection chart to build complete part number based on desired options.
