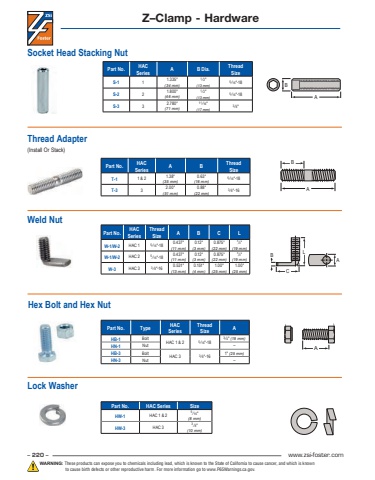

– 220 – www.zsi-foster.comWARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Socket Head Stacking NutThread Adapter (Install Or Stack)Weld NutHex Bolt and Hex NutLock WasherZ–Clamp - HardwarePart No. HAC Series A B Dia. Thread SizeS-1 1 1.335\(34 mm)1 ⁄2\(13 mm)5 ⁄16\S-2 2 1.800\(46 mm)1 ⁄2\(13 mm)5 ⁄16\S-3 3 2.780\(71 mm)11 ⁄16\(17 mm)3 ⁄8\Part No. HAC Series A B Thread SizeT-1 1 & 2 1.38\(35 mm)0.63\(16 mm) 5 ⁄16\T-3 3 2.00\(51 mm)0.88\(22 mm) 3 ⁄8\Part No. HACSeriesThread Size A B C LW-1/W-2 HAC 1 5 ⁄16\0.437\(11 mm)0.12\(3 mm)0.875\(22 mm)3⁄4\(19 mm)W-1/W-2 HAC 2 5 ⁄16\0.437\(11 mm)0.12\(3 mm)0.875\(22 mm)3⁄4\(19 mm)W-3 HAC 3 3 ⁄8\0.531\(13 mm)0.151\(4 mm)1.00\(25 mm)1.00\(25 mm)Part No. HAC Series SizeHW-1 HAC 1 & 2 5 ⁄16\(8 mm)HW-3 HAC 3 3 ⁄8\(10 mm)Part No. Type HAC SeriesThread Size AHB-1 BoltHAC 1 & 2 5 ⁄16\3 ⁄4\ (19 mm)HN-1 Nut –HB-3 BoltHAC 3 3 ⁄8\1\HN-3 Nut –ABABALCBA
