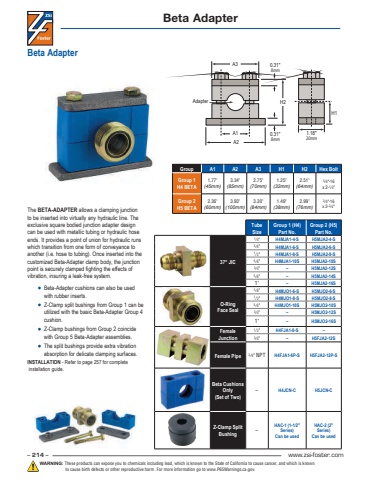

– 214 – www.zsi-foster.comWARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.The BETA-ADAPTER allows a clamping junction to be inserted into virtually any hydraulic line. The exclusive square bodied junction adapter design can be used with metallic tubing or hydraulic hose ends. It provides a point of union for hydraulic runs which transition from one form of conveyance to another (i.e. hose to tubing). Once inserted into the customized Beta-Adapter clamp body, the junction point is securely clamped fighting the effects of vibration, insuring a leak-free system.• Beta-Adapter cushions can also be used with rubber inserts.• Z-Clamp split bushings from Group 1 can be utilized with the basic Beta-Adapter Group 4 cushion. • Z-Clamp bushings from Group 2 coincide with Group 5 Beta-Adapter assemblies.• The split bushings provide extra vibration absorption for delicate clamping surfaces. INSTALLATION - Refer to page 257 for complete installation guide.Group A1 A2 A3 H1 H2 Hex Bolt Group 1H4 BETA 1.77\(45mm)3.34\(85mm)2.75\(70mm)1.25\(32mm)2.51\(64mm)3 ⁄8\ x 2-1 ⁄4\Group 2H5 BETA 2.36\(60mm)3.93\(100mm)3.30\(84mm)1.49\(38mm)2.99\(76mm)3 ⁄8\ x 2-3 ⁄4\Tube Size Group 1 (H4)Part No. Group 2 (H5)Part No.37° JIC 1 ⁄4\ H4MJA1-4-S H5MJA2-4-S 3 ⁄8\ H4MJA1-6-S H5MJA2-6-S 1 ⁄2\ H4MJA1-8-S H5MJA2-8-S 5 ⁄8\ H4MJA1-10S H5MJA2-10S 3 ⁄4\ – H5MJA2-12S 5 ⁄8\ – H5MJA2-14S 1\– H5MJA2-16S O-RingFace Seal3 ⁄8\ H4MJO1-6-S H5MJO2-6-S 1 ⁄2\ H4MJO1-8-S H5MJO2-8-S 5 ⁄8\ H4MJO1-10S H5MJO2-10S 3 ⁄4\ – H5MJO2-12S 1\– H5MJO2-16S Female Junction 1 ⁄2\ H4FJA1-8-S –3 ⁄4\ – H5FJA2-12S Female Pipe 3 ⁄8\H4FJA1-6P-S H5FJA2-12P-S Beta Cushions Only(Set of Two) – H4JCN-C H5JCN-C Z-Clamp Split Bushing –HAC-1 (1-1⁄2\Series)Can be usedHAC-2 (2\Series)Can be usedBeta AdapterBeta AdapterH2A1A2A3AdapterH10.31\8mm0.31\8mm1.18\30mm
