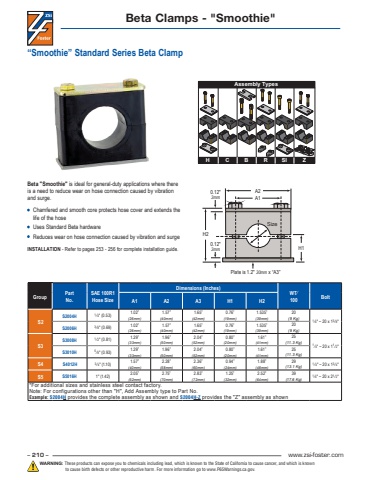

– 210 – www.zsi-foster.comWARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Beta \is a need to reduce wear on hose connection caused by vibration and surge.• Chamfered and smooth core protects hose cover and extends the life of the hose• Uses Standard Beta hardware• Reduces wear on hose connection caused by vibration and surgeINSTALLATION - Refer to pages 253 - 256 for complete installation guide.“Smoothie” Standard Series Beta Clamp H CAssembly TypesB R SI ZGroup Part No.SAE 100R1Hose SizeDimensions (Inches) WT⁄100 BoltA1 A2 A3 H1 H2 S2S2004H 1 ⁄4\1.02\(26mm)1.57\(40mm)1.65\(42mm)0.76\(19mm)1.535\(39mm)20(9 Kg) 1 ⁄4\ – 20 x 13 ⁄8\S2006H 3 ⁄8\1.02\(26mm)1.57\(40mm)1.65\(42mm)0.76\(19mm)1.535\(39mm)20(9 Kg) S3S3008H 1 ⁄2\1.29\(33mm)1.96\(50mm)2.04\(52mm)0.80\(20mm)1.61\(41mm)25(11.3 Kg) 1 ⁄4\ – 20 x 11 ⁄2\S3010H 5 ⁄8\1.29\(33mm)1.96\(50mm)2.04\(52mm)0.80\(20mm)1.61\(41mm)25(11.3 Kg) S4 S4012H 3 ⁄4\1.57\(40mm)2.28\(58mm)2.36\(60mm)0.94\(24mm)1.88\(48mm)29(13.1 Kg) 1 ⁄4\ – 20 x 13 ⁄4\ S5 S5016H 1\2.05\(52mm)2.75\(70mm)2.83\(72mm)1.25\(32mm)2.52\(64mm)39(17.6 Kg) 1 ⁄4\ – 20 x 21 ⁄2\*For additional sizes and stainless steel contact factory.Note: For configurations other than \Example: S2004H provides the complete assembly as shown and S2004H-Z provides the \wnBeta Clamps - \A2A1H1Plate is 1.2\H2Size0.12\3mm0.12\3mm
