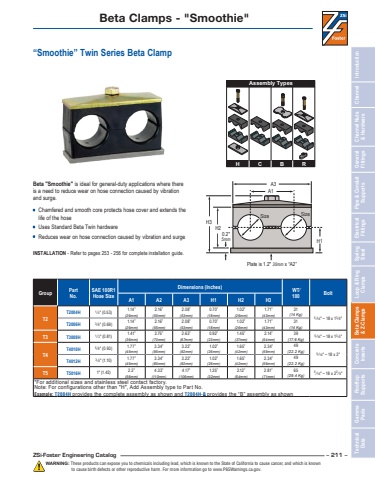

Technical Data Gamma Pads Rooftop Supports Concrete Inserts Beta Clamps & Z-Clamps Loop & Ring Clamps Spring Steel Electrical Fittings Pipe & Conduit Supports General Fittings Channel Nuts & Hardware Channel IntroductionZSi-Foster Engineering Catalog – 211 –WARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Beta \is a need to reduce wear on hose connection caused by vibration and surge. • Chamfered and smooth core protects hose cover and extends the life of the hose• Uses Standard Beta Twin hardware• Reduces wear on hose connection caused by vibration and surgeINSTALLATION - Refer to pages 253 - 256 for complete installation guide.H CAssembly TypesB RGroup Part No.SAE 100R1 Hose SizeDimensions (Inches) WT⁄100 BoltA1 A2 A3 H1 H2 H3T2T2004H 1 ⁄4\1.14\(29mm)2.16\(55mm)2.08\(53mm)0.70\(18mm)1.02\(26mm)1.71\(43mm)31(14 Kg) 5 ⁄16\ – 18 x 13 ⁄8\T2006H 3 ⁄8\1.14\(29mm)2.16\(55mm)2.08\(53mm)0.70\(18mm)1.02\(26mm)1.71\(43mm)31(14 Kg)T3 T3008H 1 ⁄2\1.41\(36mm)2.75\(70mm)2.63\(67mm)0.92\(23mm)1.45\(37mm)2.14\(54mm)39(17.6 Kg) 5 ⁄16\ – 18 x 13 ⁄4\T4T4010H 5 ⁄8\1.77\(45mm)3.34\(85mm)3.22\(82mm)1.02\(26mm)1.65\(42mm)2.34\(59mm)49(22.2 Kg) 5 ⁄16\ – 18 x 2\T4012H 3 ⁄4\1.77\(45mm)3.34\(85mm)3.22\(82mm)1.02\(26mm)1.65\(42mm)2.34\(59mm)49(22.2 Kg)T5 T5016H 1\2.2\(56mm)4.33\(110mm)4.17\(106mm)1.25\(32mm)2.12\(54mm)2.81\(71mm)65(29.4 Kg) 5 ⁄16\ – 18 x 23 ⁄8\*For additional sizes and stainless steel contact factory.Note: For configurations other than \Example: T2004H provides the complete assembly as shown and T2004H-B provides the “B” assembly as shownBeta Clamps - \“Smoothie” Twin Series Beta Clamp H1H2H3Size SizeA1A30.2\5mmPlate is 1.2\
