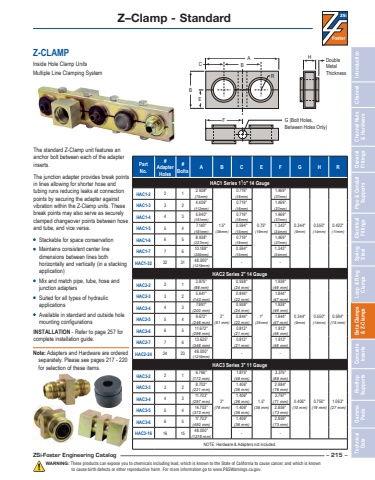

                                    Technical Data Gamma Pads Rooftop Supports Concrete Inserts Beta Clamps & Z-Clamps Loop & Ring Clamps Spring Steel Electrical Fittings Pipe & Conduit Supports General Fittings Channel Nuts & Hardware Channel IntroductionZSi-Foster Engineering Catalog – 215 –WARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Z-CLAMPInside Hole Clamp Units Multiple Line Clamping SystemThe standard Z-Clamp unit features an anchor bolt between each of the adapter inserts. The junction adapter provides break points in lines allowing for shorter hose and tubing runs reducing leaks at connection points by securing the adapter against vibration within the Z-Clamp units. These break points may also serve as securely clamped changeover points between hose and tube, and vice versa.• Stackable for space conservation• Maintains consistent center line dimensions between lines both horizontally and vertically (in a stacking application)• Mix and match pipe, tube, hose and junction adapters• Suited for all types of hydraulic applications• Available in standard and outside holemounting configurationsINSTALLATION - Refer to page 257 for complete installation guide.Note: Adapters and Hardware are ordered separately. Please see pages 217 - 220 for selection of these items.Part No.# AdapterHoles# Bolts A B C E F G H RHAC1 Series 11⁄2\HAC1-2 2 1 2.938\(75mm)1.5\(38mm)0.719\(18mm)0.75\(19mm)1.469\(37mm)0.344\(9mm)0.550\(14mm)0.422\(11mm)HAC1-3 3 2 4.406\(112mm)0.719\(18mm)1.469\(37mm)HAC1-4 4 3 5.940\(151mm)0.719\(18mm)1.469\(37mm)HAC1-5 5 4 7.140\(181mm)0.594\(15mm)1.343\(34mm)HAC1-6 6 5 8.938\(227mm)0.719\(18mm)1.469\(37mm)HAC1-7 7 6 10.188\(259mm)0.594\(15mm)1.343\(34mm)HAC1-32 32 31 48.000\(1219mm) - -HAC2 Series 2\HAC2-2 2 1 3.875\(98 mm)2\(51 mm)0.938\(24 mm)1\(25mm)1.938\(49 mm)0.344\(9mm)0.550\(14mm)0.594\(15 mm)HAC2-3 3 2 5.641\(143 mm)0.844\(22 mm)1.844\(47 mm)HAC2-4 4 3 7.891\(200 mm)0.938\(24 mm)1.938\(49 mm)HAC2-5 5 4 9.672\(246 mm)0.844\(22 mm)1.844\(47 mm)HAC2-6 6 5 11.672\(296 mm)0.813\(21 mm)1.813\(46 mm)HAC2-7 7 6 13.625\(346 mm)0.813\(21 mm)1.813\(46 mm)HAC2-24 24 23 48.000\(1219mm) - -HAC3 Series 3\HAC3-2 2 1 6.766\(172 mm)3\(76 mm)1.875\(48 mm)1.5\(38 mm)3.375\(86 mm)0.406\(10 mm)0.750\(19 mm)1.063\(27 mm)HAC3-3 3 2 8.703\(221 mm)1.406\(36 mm)2.984\(76 mm)HAC3-4 4 3 11.703\(297 mm)1.406\(36 mm)2.797\(71 mm)HAC3-5 5 4 14.703\(373 mm)1.406\(36 mm)2.859\(73 mm)HAC3-6 6 5 17.703\(450 mm)1.406\(36 mm)2.859\(73 mm)HAC3-16 16 15 48.000\(1219 mm) - -NOTE: Hardware & Adapters not included.Z–Clamp - StandardRABEC BDoubleMetalThicknessHF G (Bolt Holes,Between Holes Only)
