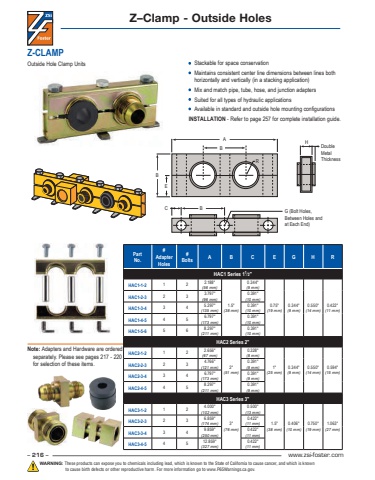

– 216 – www.zsi-foster.comWARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Note: Adapters and Hardware are ordered separately. Please see pages 217 - 220 for selection of these items.Z-CLAMPOutside Hole Clamp Units • Stackable for space conservation• Maintains consistent center line dimensions between lines both horizontally and vertically (in a stacking application)• Mix and match pipe, tube, hose, and junction adapters• Suited for all types of hydraulic applications• Available in standard and outside hole mounting configurationsINSTALLATION - Refer to page 257 for complete installation guide.Z–Clamp - Outside HolesPart No.# AdapterHoles# Bolts A B C E G H RHAC1 Series 11⁄2\HAC1-1-2 1 2 2.188\(56 mm)1.5\(38 mm)0.344\(9 mm)0.75\(19 mm)0.344\(9 mm)0.550\(14 mm)0.422\(11 mm)HAC1-2-3 2 3 3.797\(96 mm)0.391\(10 mm)HAC1-3-4 3 4 5.297\(135 mm)0.391\(10 mm)HAC1-4-5 4 5 6.797\(173 mm)0.391\(10 mm)HAC1-5-6 5 6 8.297\(211 mm)0.391\(10 mm)HAC2 Series 2\HAC2-1-2 1 2 2.656\(67 mm)2\(51 mm)0.328\(8 mm)1\(25 mm)0.344\(9 mm)0.550\(14 mm)0.594\(15 mm)HAC2-2-3 2 3 4.766\(121 mm)0.391\(9 mm)HAC2-3-4 3 4 6.797\(173 mm)0.391\(9 mm)HAC2-4-5 4 5 8.297\(211 mm)0.391\(9 mm)HAC3 Series 3\HAC3-1-2 1 2 4.000\(102 mm)3\(76 mm)0.500\(13 mm)1.5\(38 mm)0.406\(10 mm)0.750\(19 mm)1.063\(27 mm)HAC3-2-3 2 3 6.859\(174 mm)0.422\(11 mm)HAC3-3-4 3 4 9.859\(250 mm)0.422\(11 mm)HAC3-4-5 4 5 12.859\(327 mm)0.422\(11 mm)AC BB DoubleMetalThicknessHG (Bolt Holes,Between Holes andat Each End)BER
