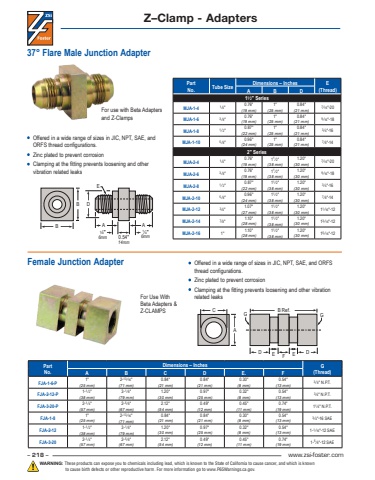

– 218 – www.zsi-foster.comWARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.37° Flare Male Junction Adapter • Offered in a wide range of sizes in JIC, NPT, SAE, and ORFS thread configurations.• Zinc plated to prevent corrosion• Clamping at the fitting prevents loosening and othervibration related leaksZ–Clamp - AdaptersPart No. Tube Size Dimensions – Inches E A B D (Thread)11⁄2\MJA-1-4 1 ⁄4\0.76\(19 mm)1\(25 mm)0.84\(21 mm) 7⁄16\MJA-1-6 3 ⁄8\0.76\(19 mm)1\(25 mm)0.84\(21 mm) 9 ⁄16\MJA-1-8 1 ⁄2\0.87\(22 mm)1\(25 mm)0.84\(21 mm) 3 ⁄4\MJA-1-10 5 ⁄8\0.96\(24 mm)1\(25 mm)0.84\(21 mm) 7⁄8\2\MJA-2-4 1 ⁄4\0.76\(19 mm)11 ⁄2\(38 mm)1.20\(30 mm) 7⁄16\MJA-2-6 3 ⁄8\0.76\(19 mm)11 ⁄2\(38 mm)1.20\(30 mm) 9 ⁄16\MJA-2-8 1 ⁄2\0.87\(22 mm)11 ⁄2\(38 mm)1.20\(30 mm) 3 ⁄4\MJA-2-10 5 ⁄8\0.96\(24 mm)11 ⁄2\(38 mm)1.20\(30 mm) 7⁄8\MJA-2-12 3 ⁄4\1.07\(27 mm)11 ⁄2\(38 mm)1.20\(30 mm) 11 ⁄16\MJA-2-14 7⁄8\1.10\(28 mm)11 ⁄2\(38 mm)1.20\(30 mm) 13 ⁄16\MJA-2-16 1\1.10\(28 mm)11 ⁄2\(38 mm)1.20\(30 mm) 15 ⁄16\Female Junction AdapterFor Use With Beta Adapters & Z-CLAMPS• Offered in a wide range of sizes in JIC, NPT, SAE, and ORFS thread configurations.• Zinc plated to prevent corrosion• Clamping at the fitting prevents loosening and other vibration related leaksPart No.Dimensions – Inches G A B C D E. F (Thread)FJA-1-6-P 1\(25 mm)2-13 ⁄16\(71 mm)0.84\(21 mm)0.84\(21 mm)0.30\(8 mm)0.54\(13 mm) 3 ⁄8\ N.P.T.FJA-2-12-P 1-1 ⁄2\(38 mm)3-1 ⁄8\(79 mm)1.20\(30 mm)0.97\(25 mm)0.32\(8 mm)0.54\(13 mm) 3 ⁄4\ N.P.T.FJA-3-20-P 2-1 ⁄4\(57 mm)2-5 ⁄8\(67 mm)2.12\(54 mm)0.49\(12 mm)0.45\(11 mm)0.74\(19 mm) 11 ⁄4\ N.P.T.FJA-1-8 1\(25 mm)2-13 ⁄16\(71 mm)0.84\(21 mm)0.84\(21 mm)0.30\(8 mm)0.54\(13 mm) 3 ⁄4\ SAEFJA-2-12 1-1 ⁄2\(38 mm)3-1 ⁄8\(79 mm)1.20\(30 mm)0.97\(25 mm)0.32\(8 mm)0.54\(13 mm) 1-1 ⁄16\ SAEFJA-3-20 2-1 ⁄4\(57 mm)2-5 ⁄8\(67 mm)2.12\(54 mm)0.49\(12 mm)0.45\(11 mm)0.74\(19 mm) 1-5 ⁄8\ SAEA AEDBB1⁄4\6mm1⁄4\0.54\6mm14mmG GB Ref.F D E E DCAFor use with Beta Adapters and Z-Clamps
