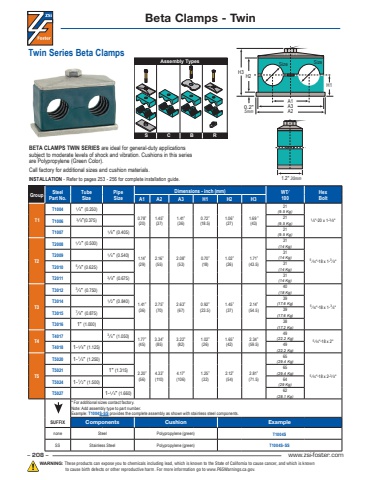

– 208 – www.zsi-foster.comWARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.Twin Series Beta ClampsS CAssembly TypesB RBETA CLAMPS TWIN SERIES are ideal for general-duty applications subject to moderate levels of shock and vibration. Cushions in this series are Polypropylene (Green Color).Call factory for additional sizes and cushion materials.INSTALLATION - Refer to pages 253 - 256 for complete installation guide.Group Steel Part No.Tube SizePipe SizeDimensions - inch (mm) WT⁄100Hex A1 A2 A3 H1 H2 H3 Bolt T1T1004 1 ⁄ 4\0.78\(20)1.45\(37)1.41\(36)0.72\(18.5)1.06\(27)1.69 \(43)21(9.5 Kg)1 ⁄4\ x 1-3 T1006 ⁄8\3 ⁄ 8\21(9.5 Kg)T1007 1 ⁄ 8\21(9.5 Kg)T2T2008 1 ⁄ 2\1.14\(29)2.16\(55)2.08\(53)0.70\(18)1.02\(26)1.71\(43.5)31(14 Kg)5 ⁄16\ x 1-3 ⁄8\T2009 1 ⁄ 4\31(14 Kg)T2010 5 ⁄ 8\31(14 Kg)T2011 3 ⁄ 8\31(14 Kg)T3T3012 3 ⁄ 4\1.41\(36)2.75\(70)2.63\(67)0.92\(23.5)1.45\(37)2.14\(54.5)40(18 Kg)5 ⁄16\ x 1-3 ⁄4\T3014 1 ⁄ 2\39(17.6 Kg)T3015 7⁄ 8\39(17.6 Kg)T3016 1\38(17.2 Kg)T4T4017 3 ⁄ 4\1.77\(45)3.34\(85)3.22\(82)1.02\(26)1.65\(42)2.34\(59.5)49(22.2 Kg) 5 ⁄16\ x 2\T4018 1-1 ⁄ 8\49(22.2 Kg)T5T5020 1-1 ⁄ 4\2.20\(56)4.33\(110)4.17\(106)1.25\(32)2.12\(54)2.81\(71.5)65(29.4 Kg)5 ⁄16\ x 2-3 ⁄8\T5021 1\65(29.4 Kg)T5024 1-1 ⁄ 2\64(29 Kg)T5027 1-1 ⁄ 4\62(28.1 Kg)SUFFIX* For additional sizes contact factory. Note: Add assembly type to part number. Example: T1004S-SS provides the complete assembly as shown with stainless steel components.Components Cushion Examplenone Steel Polypropylene (green) T1004SSS Stainless Steel Polypropylene (green) T1004S-SSBeta Clamps - TwinH1H2H3Size SizeA1A3A21.2\0.2\5mm
