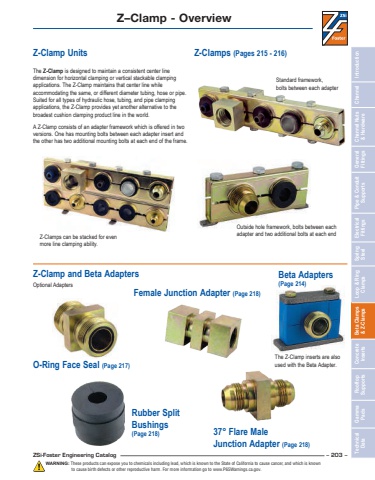

Technical Data Gamma Pads Rooftop Supports Concrete Inserts Beta Clamps & Z-Clamps Loop & Ring Clamps Spring Steel Electrical Fittings Pipe & Conduit Supports General Fittings Channel Nuts & Hardware Channel IntroductionZSi-Foster Engineering Catalog – 203 –WARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.O-Ring Face Seal (Page 217)Female Junction Adapter (Page 218)37° Flare MaleJunction Adapter (Page 218)The Z-Clamp is designed to maintain a consistent center line dimension for horizontal clamping or vertical stackable clamping applications. The Z-Clamp maintains that center line while accommodating the same, or different diameter tubing, hose or pipe. Suited for all types of hydraulic hose, tubing, and pipe clamping applications, the Z-Clamp provides yet another alternative to the broadest cushion clamping product line in the world. A Z-Clamp consists of an adapter framework which is offered in two versions. One has mounting bolts between each adapter insert and the other has two additional mounting bolts at each end of the frame.Z-Clamp UnitsStandard framework,bolts between each adapterThe Z-Clamp inserts are also used with the Beta Adapter.Z-Clamp and Beta AdaptersOptional AdaptersRubber Split Bushings (Page 218)Outside hole framework, bolts between each adapter and two additional bolts at each end Z-Clamps can be stacked for even more line clamping ability.Z–Clamp - OverviewZ-Clamps (Pages 215 - 216)Beta Adapters(Page 214)
