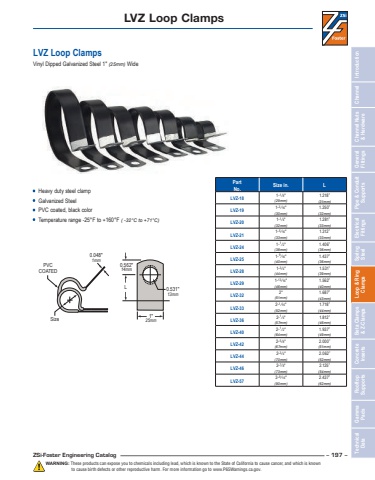

Technical Data Gamma Pads Rooftop Supports Concrete Inserts Beta Clamps & Z-Clamps Loop & Ring Clamps Spring Steel Electrical Fittings Pipe & Conduit Supports General Fittings Channel Nuts & Hardware Channel IntroductionZSi-Foster Engineering Catalog – 197 –WARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.LVZ Loop ClampsVinyl Dipped Galvanized Steel 1\• Heavy duty steel clamp • Galvanized Steel• PVC coated, black color• Temperature range -25°F to +160°F ( -32°C to +71°C)Part No. Size in. LLVZ-18 1-1 ⁄8\(29mm)1.218\(31mm)LVZ-19 1-3 ⁄16\(30mm)1.250\(32mm)LVZ-20 1-1 ⁄4\(32mm)1.281\(33mm)LVZ-21 1-5 ⁄16\(33mm)1.312\(33mm)LVZ-24 1-1 ⁄2\(38mm)1.406\(36mm)LVZ-25 1-9 ⁄16\(40mm)1.437\(36mm)LVZ-28 1-3 ⁄4\(44mm)1.531\(39mm)LVZ-29 1-13 ⁄16\(46mm)1.562\(40mm)LVZ-32 2\(51mm)1.687\(43mm)LVZ-33 2-1 ⁄16\(52mm)1.718\(44mm)LVZ-36 2-1 ⁄4\(57mm)1.812\(46mm)LVZ-40 2-1 ⁄2\(64mm)1.937\(49mm)LVZ-42 2-5 ⁄8\(67mm)2.000\(51mm)LVZ-44 2-3 ⁄4\(70mm)2.062\(52mm)LVZ-46 2-7⁄8\(73mm)2.125\(54mm)LVZ-57 3-9 ⁄16\(90mm)2.437\(62mm)LVZ Loop Clamps1\25mm0.531\13mmSizePVCCOATEDL0.562\14mm0.048\1mm
