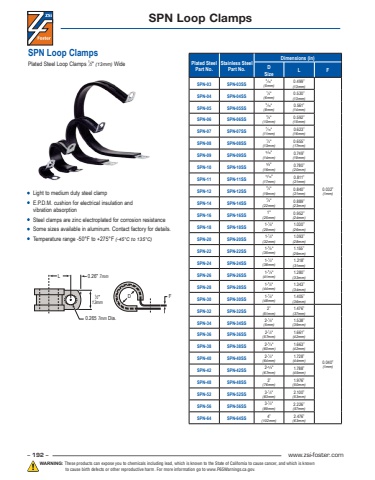

– 192 – www.zsi-foster.comWARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.SPN Loop ClampsPlated Steel Loop Clamps 1⁄2\• Light to medium duty steel clamp• E.P.D.M. cushion for electrical insulation andvibration absorption• Steel clamps are zinc electroplated for corrosion resistance• Some sizes available in aluminum. Contact factory for details.• Temperature range -50°F to +275°F (-45°C to 135°C)SPN Loop ClampsPlated Steel Part No.Stainless Steel Part No.Dimensions (in)D Size L FSPN-03 SPN-03SS 3⁄16\(5mm)0.499\(13mm)0.032\(1mm)SPN-04 SPN-04SS 1⁄4\(6mm)0.530\(13mm)SPN-05 SPN-05SS 5⁄16\(8mm)0.561\(14mm)SPN-06 SPN-06SS 3⁄ 8\(10mm)0.592\(15mm)SPN-07 SPN-07SS 7⁄16\(11mm)0.623\(16mm)SPN-08 SPN-08SS 1⁄ 2\(13mm)0.655\(17mm)SPN-09 SPN-09SS 9⁄16\(14mm)0.749\(19mm)SPN-10 SPN-10SS 5⁄ 8\(16mm)0.780\(20mm)SPN-11 SPN-11SS 11⁄16\ (17mm)0.811\(21mm)SPN-12 SPN-12SS 3⁄4\(19mm)0.840\(21mm)SPN-14 SPN-14SS 7⁄ 8\(22mm)0.889\(23mm)SPN-16 SPN-16SS 1\(25mm)0.952\(24mm)SPN-18 SPN-18SS 1-1⁄ 8\(29mm)1.030\(26mm)SPN-20 SPN-20SS 1-1⁄4\(32mm)1.093\(28mm)SPN-22 SPN-22SS 1-3⁄ 8\(35mm)1.155\(29mm)SPN-24 SPN-24SS 1-1⁄ 2\(38mm)1.218\(31mm)SPN-26 SPN-26SS 1-5⁄ 8\(41mm)1.280\(33mm)SPN-28 SPN-28SS 1-3⁄4\(44mm)1.343\(34mm)SPN-30 SPN-30SS 1-7⁄ 8\(48mm)1.405\(36mm)SPN-32 SPN-32SS 2\ (51mm)1.476\(37mm)0.040\(1mm)SPN-34 SPN-34SS 2-1⁄ 8\(5mm)1.538\(39mm)SPN-36 SPN-36SS 2-1⁄4\(57mm)1.661\(42mm)SPN-38 SPN-38SS 2-3⁄ 8\(60mm)1.663\(42mm)SPN-40 SPN-40SS 2-1⁄ 2\(64mm)1.728\(44mm)SPN-42 SPN-42SS 2-5⁄ 8\(67mm)1.788\(45mm)SPN-48 SPN-48SS 3\ (76mm)1.976\(50mm)SPN-52 SPN-52SS 3-1⁄4\(83mm)2.100\(53mm)SPN-56 SPN-56SS 3-1⁄ 2\(89mm)2.226\(57mm)SPN-64 SPN-64SS 4\ (102mm)2.476\(63mm)LD F0.26\1⁄2\13mm0.265 7mm Dia.
