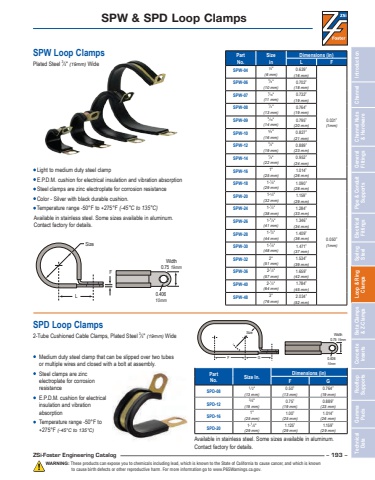

Technical Data Gamma Pads Rooftop Supports Concrete Inserts Beta Clamps & Z-Clamps Loop & Ring Clamps Spring Steel Electrical Fittings Pipe & Conduit Supports General Fittings Channel Nuts & Hardware Channel IntroductionZSi-Foster Engineering Catalog – 193 –WARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.SPW Loop ClampsPlated Steel 3⁄4\• Light to medium duty steel clamp• E.P.D.M. cushion for electrical insulation and vibration absorption• Steel clamps are zinc electroplate for corrosion resistance• Color - Silver with black durable cushion.• Temperature range -50°F to +275°F (-45°C to 135°C)Available in stainless steel. Some sizes available in aluminum. Contact factory for details.SPW & SPD Loop ClampsPart No.SizeinDimensions (in)L FSPW-04 1⁄4\(6 mm)0.639\(16 mm)0.031\(1mm)SPW-06 3⁄ 8\(10 mm)0.702\(18 mm)SPW-07 7⁄16\(11 mm)0.732\(19 mm)SPW-08 1⁄ 2\(13 mm)0.764\(19 mm)SPW-09 9⁄16\(14 mm)0.795\(20 mm)SPW-10 5⁄ 8\(16 mm)0.827\(21 mm)SPW-12 3⁄4\(19 mm)0.889\(23 mm)SPW-14 7⁄ 8\(22 mm)0.952\(24 mm)SPW-16 1\(25 mm)1.014\(26 mm)SPW-18 1-1⁄ 8\(29 mm)1.090\(28 mm)0.050\(1mm)SPW-20 1-1⁄4\(32 mm)1.159\(29 mm)SPW-24 1-1⁄ 2\(38 mm)1.284\(33 mm)SPW-26 1-5⁄ 8\(41 mm)1.346\(34 mm)SPW-28 1-3⁄4\(44 mm)1.409\(36 mm)SPW-30 1-7⁄ 8\(48 mm)1.471\(37 mm)SPW-32 2\(51 mm)1.534\(39 mm)SPW-36 2-1⁄4\(57 mm)1.659\(42 mm)SPW-40 2-1⁄ 2\(64 mm)1.784\(45 mm)SPW-48 3\(76 mm)2.034\(52 mm)0.40610mmSizeLWidth0.75 19mmFSPD Loop Clamps2-Tube Cushioned Cable Clamps, Plated Steel 3⁄4\• Medium duty steel clamp that can be slipped over two tubesor multiple wires and closed with a bolt at assembly.• Steel clamps are zinc electroplate for corrosion resistance• E.P.D.M. cushion for electrical insulation and vibration absorption• Temperature range -50°F to +275°F (-45°C to 135°C)Available in stainless steel. Some sizes available in aluminum. Contact factory for details.Part No. Size In. Dimensions (in)F GSPD-08 1 ⁄2\(13 mm)0.50\(13 mm)0.764\(19 mm)SPD-12 3 ⁄4\(19 mm)0.75\(19 mm)0.889\(23 mm)SPD-16 1\(25 mm)1.00\(25 mm)1.014\(26 mm)SPD-20 1-1 ⁄4\(29 mm)1.125\(29 mm)1.159\(29 mm)SizeF G 0.40610mmWidth0.75 19mm
