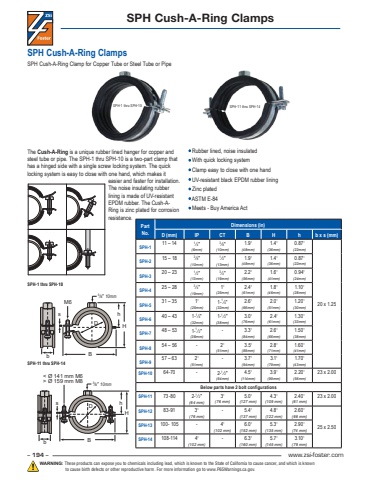

– 194 – www.zsi-foster.comWARNING: These products can expose you to chemicals including lead, which is known to the State of California to cause cancer, and which is known to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.The Cush-A-Ring is a unique rubber lined hanger for copper and steel tube or pipe. The SPH-1 thru SPH-10 is a two-part clamp that has a hinged side with a single screw locking system. The quick locking system is easy to close with one hand, which makes it easier and faster for installation. The noise insulating rubber lining is made of UV-resistant EPDM rubber. The Cush-ARing is zinc plated for corrosion resistance. • Rubber lined, noise insulated• With quick locking system• Clamp easy to close with one hand• UV-resistant black EPDM rubber lining• Zinc plated• ASTM E-84• Meets - Buy America ActSPH-1 thru SPH-10 SPH-11 thru SPH-14SPH-1 thru SPH-10BHhM63⁄8” 10mmsbDSPH-11 thru SPH-14BHhbD< Ø 141 mm M6> Ø 159 mm M8s3⁄8” 10mmPart No.Dimensions (in)D (mm) IP CT B H h b x s (mm)SPH-1 11 – 14 1⁄4\(6mm)3⁄8\(10mm)1.9\(48mm)1.4\(36mm)0.87\(22mm)20 x 1.25SPH-2 15 – 18 3⁄8\(10mm)1⁄2\(13mm)1.9\(48mm)1.4\(36mm)0.87\(22mm)SPH-3 20 – 23 1⁄2\(13mm)3⁄4\(19mm)2.2\(56mm)1.6\(41mm)0.94\(24mm)SPH-4 25 – 28 3⁄4\(19mm)1\(25mm)2.4\(61mm)1.8\(46mm)1.10\(28mm)SPH-5 31 – 35 1\(25mm)1-1⁄4\(32mm)2.6\(66mm)2.0\(51mm)1.20\(30mm)SPH-6 40 – 43 1-1⁄4\(32mm)1-1⁄2\(38mm)3.0\(76mm)2.4\(61mm)1.30\(33mm)SPH-7 48 – 53 1-1⁄2\(38mm)- 3.3\(84mm)2.6\(66mm)1.50\(38mm)SPH-8 54 – 56 - 2\(51mm)3.5\(89mm)2.8\(71mm)1.60\(41mm)SPH-9 57 – 63 2\(51mm)- 3.7\(94mm)3.1\(79mm)1.70\(43mm)SPH-10 64-70 - 2-1⁄2\(64mm)4.5\(114mm)3.9\(99mm)2.20\(56mm)23 x 2.00Below parts have 2 bolt configurationsSPH-11 73-80 2-1⁄2\(64 mm)3\(76 mm)5.0\(127 mm)4.3\(109 mm)2.40\(61 mm)23 x 2.00SPH-12 83-91 3\(76 mm)- 5.4\(137 mm)4.8\(122 mm)2.60\(66 mm)25 x 2.50 SPH-13 100- 105 - 4\(102 mm)6.0\(152 mm)5.3\(135 mm)2.90\(74 mm)SPH-14 108-114 4\(102 mm)- 6.3\(160 mm)5.7\(145 mm)3.10\(79 mm)SPH Cush-A-Ring ClampsSPH Cush-A-Ring ClampsSPH Cush-A-Ring Clamp for Copper Tube or Steel Tube or Pipe
